UT60N03 - N-CHANNEL LOGIC LEVEL MOSFET

Unisonic Technologies

The UT60N03 by Unisonic Technologies is a N-CHANNEL LOGIC LEVEL MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

UT60N03 N-CHANNEL LOGIC LEVEL MOSFET by Unisonic Technologies - Datasheet Preview — Official preview page of the UT60N03 N-CHANNEL LOGIC LEVEL MOSFET datasheet (Unisonic Technologies).

Datasheet Details

Part number	UT60N03
Manufacturer	Unisonic Technologies
File Size	251.20 KB
Description	N-CHANNEL LOGIC LEVEL MOSFET
Datasheet	UT60N03-UnisonicTechnologies.pdf

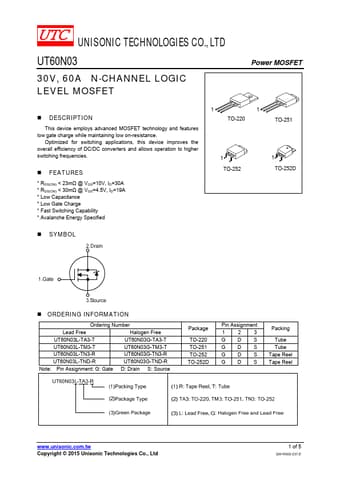

Additional preview pages of the UT60N03 datasheet.

UT60N03 Product details

Description

This device employs advanced MOSFET technology and

Features

S.
RDS(ON) < 23mΩ @ VGS=10V, ID=30A.
RDS(ON) < 30mΩ @ VGS=4.5V, ID=19A.
Low Capacitance.
Low Gate Charge.
Fast Switching Capability.
Avalanche Energy Specified 11 TO-220 1 TO-252 TO-251 1 TO-252D.
SYMBOL.
