UH477 - SINGLE PHASE DC MOTOR DRIVE

Description

The UTC UH477 is particularly designed for a single phase DC motor driver circuit.

It includes hall sensor and output coil drivers.

The range of the operating voltage and the operation current is typically 0.3A.

Features

  • S.
  • Operating Voltage Ranges Widely from 3.0V to 20V.
  • 1 Chip Hall Sensor/Drivers.
  • Output Thermal Shutdown Protect Circuit.
  • Output Sink Current up to 300mA.

📥 Download Datasheet

📁 Similar Datasheet

  • UH447 - SMART MOTOR DRIVER (UTC)
  • UH4921 - DYNAMIC DIFFERENTIAL HALL EFFECT SENSOR (UTC)
  • UH495 - SOLID STATE SENSORS MINIATURE RATIOMETRIC LINEAR (UTC)
  • UH4K - DUAL DIGITAL TRANSISTORS (UTC)
  • UH4PBC - High Current Density Surface Mount Ultrafast Rectifiers (Vishay Siliconix)
  • UH4PCC - High Current Density Surface Mount Ultrafast Rectifiers (Vishay Siliconix)
  • UH4PDC - High Current Density Surface Mount Ultrafast Rectifiers (Vishay Siliconix)
Other Datasheets by Unisonic Technologies
  • UH457 - SMART MOTOR DRIVER

Full PDF Text Transcription

Click to expand full text

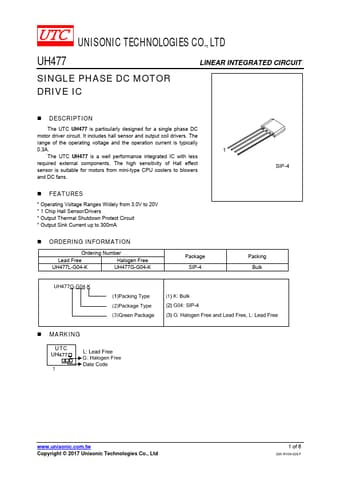

UNISONIC TECHNOLOGIES CO., LTD UH477 LINEAR INTEGRATED CIRCUIT SINGLE PHASE DC MOTOR DRIVE IC  DESCRIPTION The UTC UH477 is particularly designed for a single phase DC motor driver circuit. It includes hall sensor and output coil drivers. The range of the operating voltage and the operation current is typically 0.3A. The UTC UH477 is a well performance integrated IC with less required external components. The high sensitivity of Hall effect sensor is suitable for motors from mini-type CPU coolers to blowers and DC fans.  FEATURES * Operating Voltage Ranges Widely from 3.
