UC2844 - HIGH PERFORMANCE CURRENT MODE PWM CONTROLLERS

This page provides the datasheet information for the UC2844, a member of the UC2845 HIGH PERFORMANCE CURRENT MODE PWM CONTROLLERS family.

Datasheet Summary

Description

The UTC UC2844/2845 are high performance fixed frequency current mode controllers that specifically designed for Off-Line and DC to DC converter applications with minimal external parts count.

Features

  • S.
  • Operation output switching frequency up to 500 kHz.
  • Output deadtime adjustable from 50% to 70%.
  • Automatic feed forward compensation.
  • Latching PWM for cycle-by-cycle current limiting.
  • High current totem pole output.
  • Internally trimmed reference with under voltage lockout.
  • UVLO with hysteresis.
  • Low startup and operating current.

📥 Download Datasheet

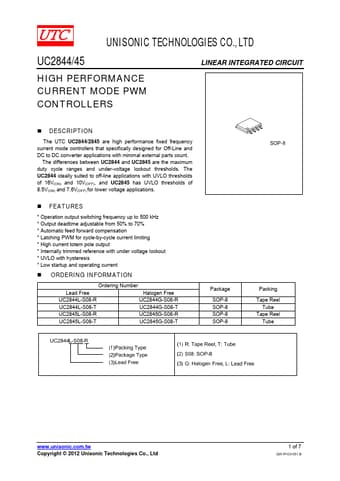

Datasheet preview – UC2844

Datasheet Details

Part number UC2844
Manufacturer Unisonic Technologies
File Size 285.95 KB
Description HIGH PERFORMANCE CURRENT MODE PWM CONTROLLERS
Datasheet download datasheet UC2844 Datasheet
Additional preview pages of the UC2844 datasheet.

📁 Similar Datasheet

  • UC2844 - CURRENTMODE PWM CONTROLLER (ST Microelectronics)
  • UC2844 - Current Mode PWM Controller (Unitrode)
  • UC2844 - Current-Mode PWM Controllers (Texas Instruments)
  • UC2844 - High Performance Current-Mode Controller (ON Semiconductor)
  • UC2844 - fixed frequency current mode PWM controller (UMW)
  • UC2844A - HIGH PERFORMANCE CURRENT MODE PWM CONTROLLER (ST Microelectronics)
  • UC2844A - CURRENT MODE PWM CONTROLLER (LINFINITY)
  • UC2844A - Current-Mode PWM Controllers (Texas Instruments)
  • UC2844A - Current Mode PWM Controller (Unitrode)
  • UC2844AQ - CURRENT-MODE PWM CONTROLLER (Texas Instruments)
Other Datasheets by Unisonic Technologies
  • UC2843B - HIGH-PERFORMANCE CURRENT-MODE PWM CONTROLLERS
  • UC2845 - HIGH PERFORMANCE CURRENT MODE PWM CONTROLLERS
  • UC2306 - MICROPOWER DC/DC CONVERTERS

Full PDF Text Transcription

Click to expand full text
UNISONIC TECHNOLOGIES CO., LTD UC2844/45 LINEAR INTEGRATED CIRCUIT HIGH PERFORMANCE CURRENT MODE PWM CONTROLLERS „ DESCRIPTION The UTC UC2844/2845 are high performance fixed frequency current mode controllers that specifically designed for Off-Line and DC to DC converter applications with minimal external parts count. The differences between UC2844 and UC2845 are the maximum duty cycle ranges and under-voltage lockout thresholds. The UC2844 ideally suited to off-line applications with UVLO thresholds of 16V(ON) and 10V(OFF), and UC2845 has UVLO thresholds of 8.5V(ON) and 7.6V(OFF) for lower voltage applications.
