U74LVC86A QUAD 2-INPUT EXCLUSIVE OR GATE

Unisonic Technologies

U74LVC86A Description

UNISONIC TECHNOLOGIES CO., LTD U74LVC86A QUAD 2-INPUT EXCLUSIVE OR GATE CMOS IC * .
The U74LVC86A is a quad 2-input exclusive OR gate which performs the function Y=A  B or Y=AB  AB .

U74LVC86A Features

* Wide supply voltage range from 1.2V to 3.6V
* Max tpd of 4.6ns at CL=50pF, VCC=3.3V
* Up to 5.5V inputs accept voltages
* Low power consumption, ICC = 1 μA (Max. )
* Compatible with TTL families
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74LVC86AL-S1

📥 Download Datasheet

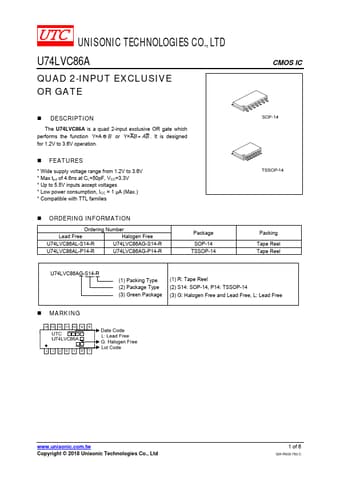

U74LVC86A Datasheet Preview — Preview of U74LVC86A PDF
