U74LVC640 - OCTAL BUS TRANSCEIVER

Unisonic Technologies

📥 Download Datasheet

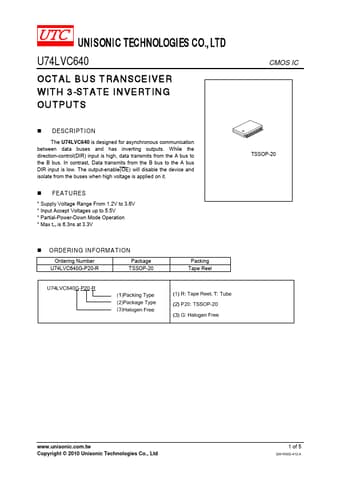

U74LVC640 Datasheet Preview — Preview of U74LVC640 PDF

Datasheet Details

Part number	U74LVC640
Manufacturer	Unisonic Technologies
File Size	261.89 KB
Description	OCTAL BUS TRANSCEIVER
Datasheet	U74LVC640_UnisonicTechnologies.pdf

U74LVC640 Product details

Description

CMOS IC The U74LVC640 is designed for asynchronous communication between data buses and has inverting outputs.While the direction-control(DIR) input is high, data transmits from the A bus to the B bus.In contrast, Data transmits from the B bus to the A bus DIR input is low.The output-enable(OE) will disable the device and isolate from the buses when high voltage is applied on it.TSSOP-20

Features

ES.
Supply Voltage Range From 1.2V to 3.6V.
Input Accept Voltages up to 5.5V.
Partial-Power-Down Mode Operation.
Max tPD is 6.3ns at 3.3V.
