U74LVC373 - OCTAL TRANSPARENT D-TYPE LATCHES

Description

The UTC U74LVC373 is a octal transparent D-type latch with 3-state outputs, and it has 8 channels.

Features

  • ES.
  • Operate from 1.65V to 3.6V.
  • Inputs accept voltages to 5.5V.
  • Max tpd of 6.8ns @ 3.3V.
  • Typical VOL2.0V @ VCC=3.3V, Ta=25°C.
  • Support mixed-mode signal operation on all ports (5V input/output voltage with 3.3V VCC).
  • I off supports partial-power-down mode operation.
  • Halogen Free.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by Unisonic Technologies

Full PDF Text Transcription

Click to expand full text

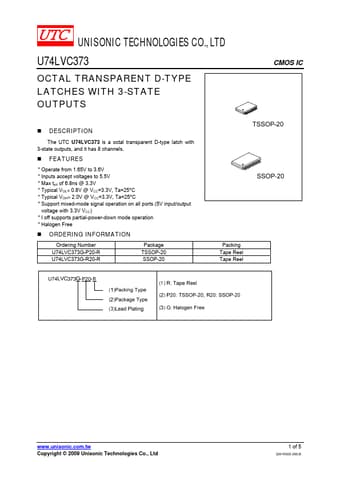

UNISONIC TECHNOLOGIES CO., LTD U74LVC373 OCTAL TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS „ DESCRIPTION CMOS IC The UTC U74LVC373 is a octal transparent D-type latch with 3-state outputs, and it has 8 channels. „ FEATURES * Operate from 1.65V to 3.6V * Inputs accept voltages to 5.5V * Max tpd of 6.8ns @ 3.3V * Typical VOL<0.8V @ VCC=3.3V, Ta=25°C * Typical VOH>2.0V @ VCC=3.3V, Ta=25°C * Support mixed-mode signal operation on all ports (5V input/output voltage with 3.3V VCC) * I off supports partial-power-down mode operation * Halogen Free „ ORDERING INFORMATION Ordering Number U74LVC373G-P20-R U74LVC373G-R20-R Package TSSOP-20 SSOP-20 www.DataSheet.net/ Packing Tape Reel Tape Reel www.unisonic.com.tw Copyright © 2009 Unisonic Technologies Co., Ltd 1 of 5 QW-R502-265.
