U74LVC1G00 - SINGLE 2-INPUT NAND GATE

Description

The U74LVC1G00 is a 2-input NAND gate device which provides the Function Y=A

B or Y=A  B in positive logic.

from destruction when it is powered down.

Features

  • Operate From 1.65V to 5.5V.
  • Inputs Accept Voltages To 5.5V.
  • High Noise Immunity.
  • Low Power Dissipation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
U74LVC1G0832 SINGLE 3-INPUT POSITIVE AND-OR GATE UTC
U74LVC1G14 SINGLE SCHMITT-TRIGGER INVERTER UTC
U74LVC1G17 SINGLE SCHMITT-TRIGGER BUFFER UTC
U74LVC1G175 SINGLE D-TYPE FLIP-FLOP UTC
U74LVC1G240 SINGLE BUFFER/DRIVER UTC

Other Datasheets by Unisonic Technologies

Part Number Description
U74LVC1G02 SINGLE 2-INPUT NOR GATE
U74LVC1G04 SINGLE INVERTER GATE
U74LVC1G06 SINGLE INVERTER
U74LVC1G07 BUFFER/DRIVER
U74LVC1G08 2-INPUT AND GATE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

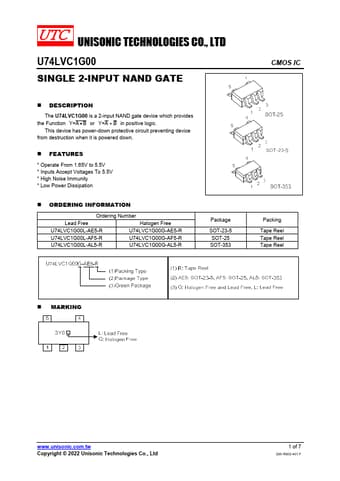

UNISONIC TECHNOLOGIES CO., LTD U74LVC1G00 SINGLE 2-INPUT NAND GATE  DESCRIPTION The U74LVC1G00 is a 2-input NAND gate device which provides the Function Y=A  B or Y=A  B in positive logic. This device has power-down protective circuit preventing device from destruction when it is powered down.  FEATURES * Operate From 1.65V to 5.5V * Inputs Accept Voltages To 5.5V * High Noise Immunity * Low Power Dissipation  ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74LVC1G00L-AE5-R U74LVC1G00G-AE5-R U74LVC1G00L-AF5-R U74LVC1G00G-AF5-R U74LVC1G00L-AL5-R U74LVC1G00G-AL5-R Package SOT-23-5 SOT-25 SOT-353 CMOS IC Packing Tape Reel Tape Reel Tape Reel  MARKING www.unisonic.com.tw Copyright © 2022 Unisonic Technologies Co., Ltd 1 of 7 QW-R502-401.
