PA3312 - DUAL 2.6W AUDIO POWER AMPLIFIER

Unisonic Technologies

The PA3312 by Unisonic Technologies is a DUAL 2.6W AUDIO POWER AMPLIFIER. Below is the official datasheet preview.

📥 Download Datasheet

PA3312 DUAL 2.6W AUDIO POWER AMPLIFIER by Unisonic Technologies - Datasheet Preview — Official preview page of the **PA3312** DUAL 2.6W AUDIO POWER AMPLIFIER datasheet (Unisonic Technologies).

Datasheet Details

Part number	PA3312
Manufacturer	Unisonic Technologies
File Size	313.15 KB
Description	DUAL 2.6W AUDIO POWER AMPLIFIER
Datasheet	PA3312-UnisonicTechnologies.pdf

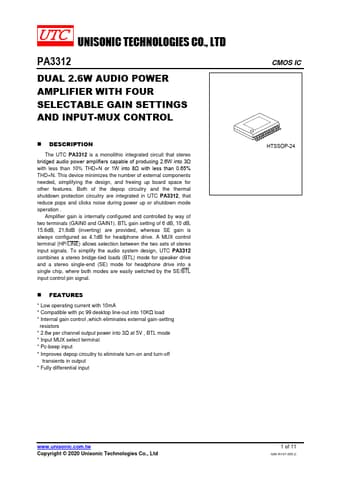

Additional preview pages of the PA3312 datasheet.

PA3312 Product details

Description

The UTC PA3312 is a monolithic integrated circuit that stereo bridged audio power amplifiers capable of producing 2.6W into 3Ω with less than 10% THD+N or 1W into 8Ω with less than 0.65% THD+N.

Features

Low operating current with 10mA.
Compatible with pc 99 desktop line-out into 10KΩ load.
Internal gain control ,which eliminates external gain-setting resistors.
2.6w per channel output power into 3Ω at 5V , BTL mode.
Input MUX select terminal.
Pc-beep input.
Improves depop circuitry to eliminate turn-on and turn-off transients in output.
