M3366 - 3-INPUT VIDEO SWITCH

Description

The UTC M3366 is a three input integrated video switch selects one video or audio signal from three input signals.

It contains driver circuit for 75Ω load and is able to connect to TV monitor.

Its operating supply voltage range is 5 ~ 12V and bandwidth is 10MHz.

Features

  • br>.
  • Operating Voltage 4.75 ~ 13V.
  • 3 Input- 1 Output.
  • Internal Driver Circuit for 75Ω lmpedance.
  • Muting Function available.
  • Internal Clamp Function.
  • Low power Dissipation 16.5mA.
  • Cross-talk 70dB (at 4.43MHz).
  • Wide Frequency Range 10MHz (2Vp-p Input).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
M33281GS-20 CMOS Floating Point Processing Unit Mitsubishi Electric
M3328c DVB-S Solution Ali
M3351 M3351 Advanced DVD Single-chip Solution Acer Laboratories

Other Datasheets by Unisonic Technologies

Part Number Description
M3368 3-INPUT VIDEO SWITCH
M3355 2-INPUT SINGLE VIDEO SWITCH

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

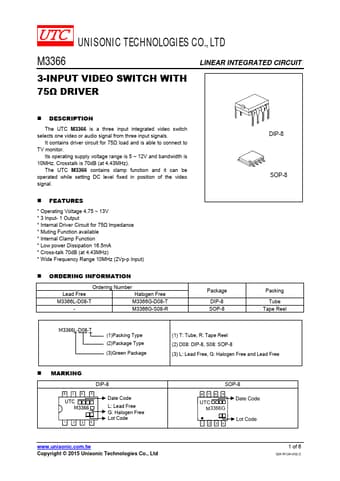

UNISONIC TECHNOLOGIES CO., LTD M3366 LINEAR INTEGRATED CIRCUIT 3-INPUT VIDEO SWITCH WITH 75Ω DRIVER  DESCRIPTION The UTC M3366 is a three input integrated video switch selects one video or audio signal from three input signals. It contains driver circuit for 75Ω load and is able to connect to TV monitor. Its operating supply voltage range is 5 ~ 12V and bandwidth is 10MHz. Crosstalk is 70dB (at 4.43MHz). The UTC M3366 contains clamp function and it can be operated while setting DC level fixed in position of the video signal.  FEATURES * Operating Voltage 4.75 ~ 13V * 3 Input- 1 Output * Internal Driver Circuit for 75Ω lmpedance * Muting Function available * Internal Clamp Function * Low power Dissipation 16.5mA * Cross-talk 70dB (at 4.
