78D10A, 78D05A - 3-TERMINALS 1A POSITIVE VOLTAGE REGULATOR

Name: 78D10A
SKU: 78D10A-972706

Unisonic Technologies

The 78D10A by Unisonic Technologies is a 3-TERMINALS 1A POSITIVE VOLTAGE REGULATOR. Below is the official datasheet preview.

Datasheet Details

Part number	78D10A, 78D05A
Manufacturer	Unisonic Technologies
File Size	353.42 KB
Description	3-TERMINALS 1A POSITIVE VOLTAGE REGULATOR
Datasheet	78D05A-UnisonicTechnologies.pdf
Note	This datasheet PDF includes multiple part numbers: 78D10A, 78D05A. Please refer to the document for exact specifications by model.

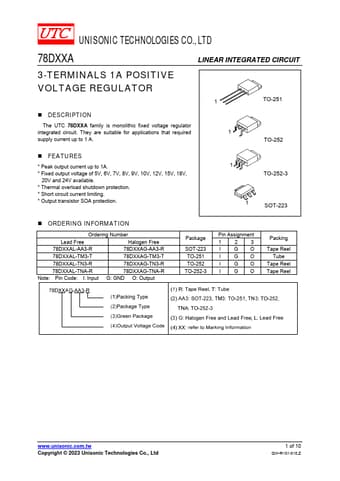

Additional preview pages of the 78D10A datasheet.

The UTC 78DXXA family is monolithic fixed voltage regulator integrated circuit.

S.
Peak output current up to 1A.
Fixed output voltage of 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V and 24V available.
Thermal overload shutdown protection.
Short circuit current limiting.
Output transistor SOA protection. 1 TO-252-3 1 SOT-223.
