1N40A - N-CHANNEL POWER MOSFET

Unisonic Technologies

The 1N40A by Unisonic Technologies is a N-CHANNEL POWER MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

1N40A N-CHANNEL POWER MOSFET by Unisonic Technologies - Datasheet Preview — Official preview page of the 1N40A N-CHANNEL POWER MOSFET datasheet (Unisonic Technologies).

Datasheet Details

Part number	1N40A
Manufacturer	Unisonic Technologies
File Size	177.32 KB
Description	N-CHANNEL POWER MOSFET
Datasheet	1N40A-UnisonicTechnologies.pdf

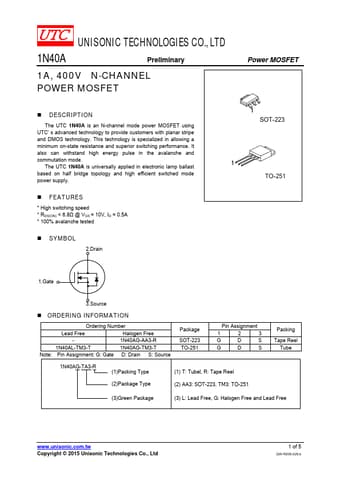

Additional preview pages of the 1N40A datasheet.

1N40A Product details

Description

The UTC 1N40A is an N-channel mode power MOSFET using UTC’ s advanced technology to provide customers with planar stripe and DMOS technology.

Features

High switching speed.
RDS(ON) < 6.8Ω @ VGS = 10V, ID = 0.5A.
100% avalanche tested.
SYMBOL 2.Drain Power MOSFET 1.Gate 3.Source.
