UM37512P - VLDO Linear Regulator

Download the UM37512P datasheet PDF. This datasheet also covers the UM37512S variant, as both devices belong to the same vldo linear regulator family and are provided as variant models within a single manufacturer datasheet.

Description

The UM375xx series are VLDO (very low dropout) linear regulators designed for low power portable applications.

Features

  • include high output voltage accuracy, under voltage lockout, stability with ultra low ESR ceramic capacitors as small as 1μF, thermal overload protection and output current limiting. The UM375xx series are available in a low profile SOT23-5 and SOT353 package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UM37512S-UnionSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UM37512P
Manufacturer Union Semiconductor
File Size 319.25 KB
Description VLDO Linear Regulator
Datasheet download datasheet UM37512P Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UM3751 (UM3751 - UM3755) PROGRAMMABLE ENCODER/DECODER ETC
UM3750 Programmable Encoder/Decoder UMC Corporation
UM3750A Programmable Encoder/Decoder UMC Corporation
UM3752 (UM3751 - UM3755) PROGRAMMABLE ENCODER/DECODER ETC
UM3753 (UM3751 - UM3755) PROGRAMMABLE ENCODER/DECODER ETC

Other Datasheets by Union Semiconductor

Part Number Description
UM37512S VLDO Linear Regulator
UM37513P VLDO Linear Regulator
UM37513S VLDO Linear Regulator
UM37514P VLDO Linear Regulator
UM37514S VLDO Linear Regulator

Full PDF Text Transcription

Click to expand full text

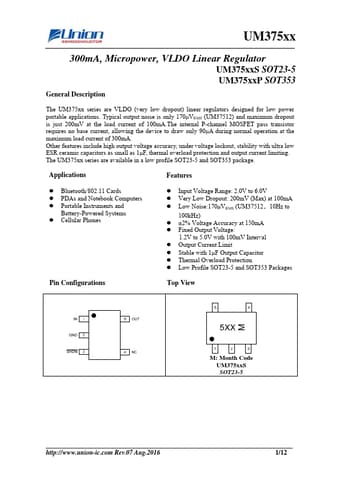

UM375xx 300mA, Micropower, VLDO Linear Regulator UM375xxS SOT23-5 UM375xxP SOT353 General Description The UM375xx series are VLDO (very low dropout) linear regulators designed for low power portable applications. Typical output noise is only 170μVRMS (UM37512) and maximum dropout is just 200mV at the load current of 100mA.The internal P-channel MOSFET pass transistor requires no base current, allowing the device to draw only 90μA during normal operation at the maximum load current of 300mA. Other features include high output voltage accuracy, under voltage lockout, stability with ultra low ESR ceramic capacitors as small as 1μF, thermal overload protection and output current limiting. The UM375xx series are available in a low profile SOT23-5 and SOT353 package.
