UM3506QA - Synchronous Step-Down Converter

Union Semiconductor

📥 Download Datasheet

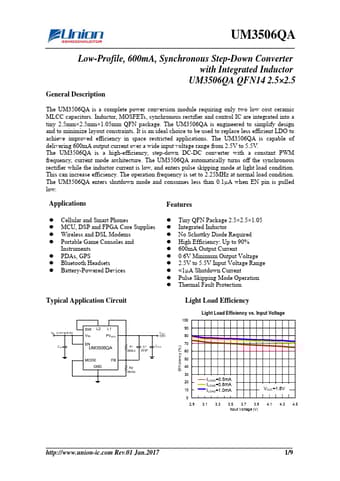

UM3506QA Datasheet Preview — Preview of UM3506QA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UM3506QA
Manufacturer	UniON Semiconductor
File Size	308.14 KB
Description	Synchronous Step-Down Converter
Datasheet	UM3506QA-UnionSemiconductor.pdf

UM3506QA Product details

Description

The UM3506QA is a complete power conversion module requiring only two low cost ceramic MLCC capacitors.

Features

z Tiny QFN Package 2.5×2.5×1.05 z Integrated Inductor z No Schottky Diode Required z High Efficiency: Up to 90% z 600mA Output Current z 0.6V Minimum Output Voltage z 2.5V to 5.5V Input Voltage Range z.
