UM3488 - RS-422 Transceivers

Name: UM3488
SKU: UM3488-1324651

Union Semiconductor

📥 Download Datasheet

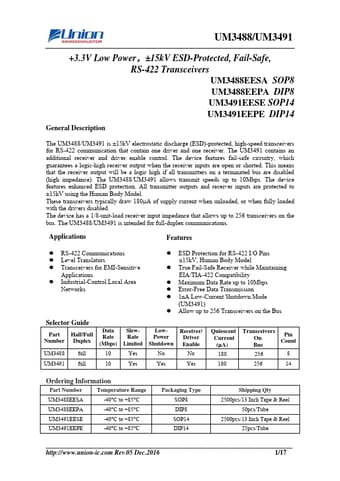

UM3488 Datasheet Preview — Preview of UM3488 PDF

Datasheet Details

Part number	UM3488
Manufacturer	UniON Semiconductor
File Size	310.78 KB
Description	RS-422 Transceivers
Datasheet	UM3488-UnionSemiconductor.pdf

UM3488 Product details

Description

The UM3488/UM3491 is ±15kV electrostatic discharge (ESD)-protected, high-speed transceivers for RS-422 communication that contain one driver and one receiver.

Features

fail-safe circuitry, which guarantees a logic-high receiver output when the receiver inputs are open or shorted. This means that the receiver output will be a logic high if all transmitters on a terminated bus are disabled (high impedance). The UM3488/UM3491 allows transmit speeds up to 10Mbps. The device features enhanced ESD protection. All transmitter outputs and receiver inputs are protected to ±15kV using the Human Body Model. These transceivers typically draw 180µA of supply current when u.
