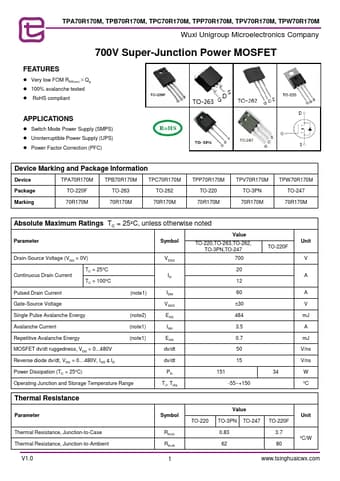

TPA70R170M, TPB70R170M, TPC70R170M, TPP70R170M, TPV70R170M, TPW70R170M
Wuxi Unigroup Microelectronics Company
700V Super-Junction Power MOSFET
FEATURES
Very low FOM RDS(on)×Qg 100% avalanche tested RoHS compliant
APPLICATIONS
Switch Mode Power Supply (SMPS) Uninterruptible Power Supply (UPS) Power Factor Correction (PFC)
Device Marking and Package Information
Device
TPA70R170M TPB70R170M TPC70R170M
Package
TO-220F
TO-263
TO-262
Marking
70R170M
70R170M
70R170M
TPP70R170M TO-220 70R170M
TPV70R170M TO-3PN 70R170M
TPW70R170M TO-247 70R170M
Absolute Maximum Ratings TC = 25ºC, unless otherwise noted
Parameter Drain-Source Voltage (VGS = 0V)
Symbol VDSS
Value
TO-220,TO-263,TO-262, TO-3PN,TO-247
700
Continuous Drain Current
TC = 25ºC TC = 100ºC
ID
20 12
Pulsed D
TPA70R170M Datasheet
