TPA65R170M - 650V Super-Junction Power MOSFET

Datasheet Summary

Features

  • l   Very low FOM RDS(on)×Qg l   100% avalanche tested l    RoHS compliant.

📥 Download Datasheet

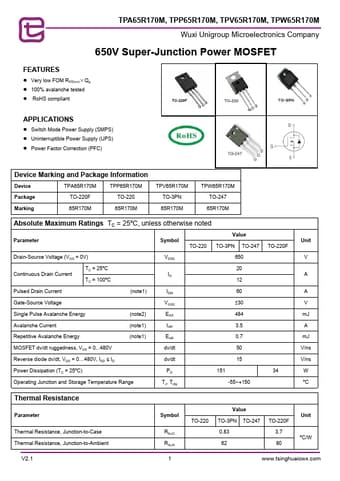

Datasheet preview – TPA65R170M

Datasheet Details

Part number TPA65R170M
Manufacturer Unigroup
File Size 701.35 KB
Description 650V Super-Junction Power MOSFET
Datasheet download datasheet TPA65R170M Datasheet
Additional preview pages of the TPA65R170M datasheet.

📁 Similar Datasheet

  • TPA6531 - Low-Power Op Amps (3PEAK)
  • TPA6532 - Low-Power Op Amps (3PEAK)
  • TPA6533 - Low-Power Op Amps (3PEAK)
  • TPA6551 - Low-Noise Op Amps (3PEAK)
  • TPA6552 - Low-Noise Op Amps (3PEAK)
  • TPA6554 - Low-Noise Op Amps (3PEAK)
  • TPA6581 - 10-MHz Op Amp (3PEAK)
  • TPA6582 - 10-MHz Op Amp (3PEAK)
  • TPA6584 - 10-MHz Op Amp (3PEAK)
  • TPA6010A4 - STEREO 2.7-W AUDIO POWER AMPLIFIER (Texas Instruments)
Other Datasheets by Unigroup

Full PDF Text Transcription

Click to expand full text
TPA65R170M, TPP65R170M, TPV65R170M, TPW65R170M   Wuxi Unigroup Microelectronics Company 650V Super-Junction Power MOSFET FEATURES l   Very low FOM RDS(on)×Qg l   100% avalanche tested l    RoHS compliant APPLICATIONS l   Switch Mode Power Supply (SMPS) l   Uninterruptible Power Supply (UPS) l   Power Factor Correction (PFC) Device Marking and Package Information Device TPA65R170M TPP65R170M TPV65R170M Package TO-220F TO-220 TO-3PN Marking 65R170M 65R170M 65R170M TPW65R170M TO-247 65R170M Absolute Maximum Ratings TC = 25ºC, unless otherwise noted Parameter Symbol TO-220 Value TO-3PN TO-247 Drain-Source Voltage (VGS = 0V) VDSS 650 Continuous Drain Current  TC = 25ºC TC = 100ºC Pulsed Drain Current                                                (note1) Gate-Source Vo
