3KP36A-LF - 3000W TRANSIENT VOLTAGE SUPPRESSOR

Download the 3KP36A-LF datasheet PDF. This datasheet also covers the 3KP5.0A-LF variant, as both devices belong to the same 3000w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (3KP5.0A-LF-Unictron.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 3KP36A-LF
Manufacturer Unictron
File Size 282.17 KB
Description 3000W TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet 3KP36A-LF Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
3KP36A-G 3000W Transient Voltage Suppressor Comchip
3KP36A-HF 3000W Transient Voltage Suppressor Comchip
3KP36A Transient Voltage Suppressors Brightking
3KP36A 3000W Transient Voltage Suppressor JIEJIE
3KP36A TRANSIENT VOLTAGE SUPPRESSORS Dc Components

Other Datasheets by Unictron

Part Number Description
3KP36CA-LF 3000W TRANSIENT VOLTAGE SUPPRESSOR
3KP30A-LF 3000W TRANSIENT VOLTAGE SUPPRESSOR
3KP30CA-LF 3000W TRANSIENT VOLTAGE SUPPRESSOR
3KP33A-LF 3000W TRANSIENT VOLTAGE SUPPRESSOR
3KP33CA-LF 3000W TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

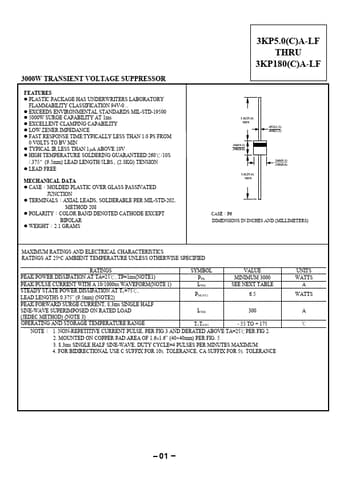

3000W TRANSIENT VOLTAGE SUPPRESSOR FEATURES  PLASTIC PACKAGE HAS UNDERWRITERS LABORATORY FLAMMABILITY CLASSIFICATION 94V-0 ..  EXCEEDS ENVIRONMENTAL STANDARDS MIL-STD-19500  5000W SURGE CAPABILITY AT 1ms  EXCELLENT CLAMPING CAPABILITY  LOW ZENER IMPEDANCE  FAST RESPONSE TIME:TYPICALLY LESS THAN 1.0 PS FROM 0 VOLTS TO BV MIN  TYPICAL IR LESS THAN 1A ABOVE 10V  HIGH TEMPERATURE SOLDERING GUARANTEED:260℃/10S /.375〞(9.5mm) LEAD LENGTH/5LBS., (2.3KG) TENSION  LEAD FREE MECHANICAL DATA  CASE：MOLDED PLASTIC OVER GLASS PASSIVATED JUNCTION  TERMINALS︰AXIAL LEADS, SOLDERABLE PER MIL-STD-202, METHOD 208  POLARITY：COLOR BAND DENOTED CATHODE EXCEPT BIPOLAR  WEIGHT：2.1 GRAMS 3KP5.0(C)A-LF THRU 3KP180(C)A-LF 1.0(25.4) MIN .360(9.1) .340(8.6) 1.0(25.4) MIN .052(1.3) .048(1.2) .360(9.1) .
