1N4942

The 1N4942 is 1.0Amp Fast Recovery Rectifiers designed by UUX.

Product Overview

Part number	1N4942
Manufacturer	UUX
File Size	309.71 KB
Description	1.0Amp Fast Recovery Rectifiers
Datasheet	1N4942-UUX.pdf

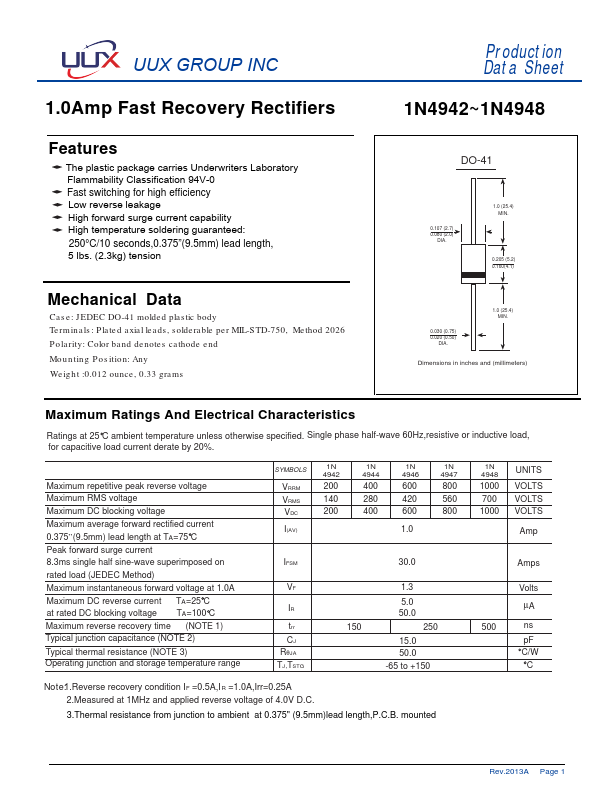

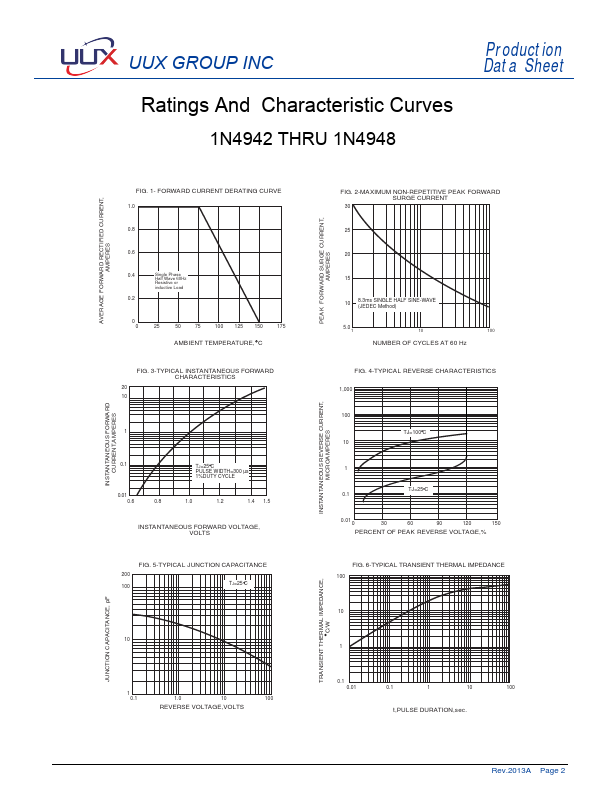

Additional preview pages of the 1N4942 datasheet.

The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data Case: JEDEC DO-41 molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight :0.012 ounce, 0.33.
