UT3418 - N-Channel Power MOSFET

Name: UT3418
SKU: UT3418-946897

UTC

The UT3418 by UTC is a N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

UT3418 N-Channel Power MOSFET by UTC - Datasheet Preview — Official preview page of the **UT3418** N-Channel Power MOSFET datasheet (UTC).

Datasheet Details

Part number	UT3418
Manufacturer	UTC
File Size	626.78 KB
Description	N-Channel Power MOSFET
Datasheet	UT3418-UTC.pdf

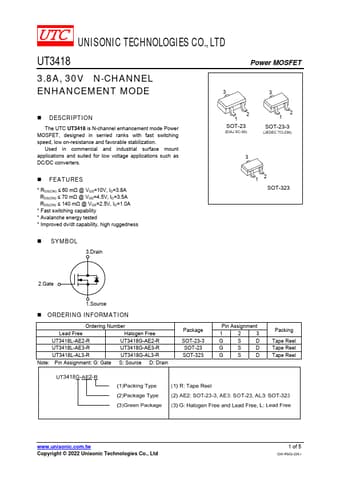

Additional preview pages of the UT3418 datasheet.

UT3418 Product details

Description

The UTC UT3418 is N-channel enhancement mode Power MOSFET, designed in serried ranks with fast switching speed, low on-resistance and favorable stabilization.

Features

S.
RDS(ON) ≤ 60 mΩ @ VGS=10V, ID=3.8A RDS(ON) ≤ 70 mΩ @ VGS=4.5V, ID=3.5A RDS(ON) ≤ 140 mΩ @ VGS=2.5V, ID=1.0A.
Fast switching capability.
Avalanche energy tested.
Improved dv/dt capability, high ruggedness.
SYMBOL 3.Drain 2 1 SOT-23 (EIAJ SC-59) 2 1 SOT-23-3 (JEDEC TO-236) 3 12 SOT-323 2.Gate 1.Source.
