UMD9113 - BRUSH DC MOTOR DRIVER

UTC

The UMD9113 by UTC is a BRUSH DC MOTOR DRIVER. Below is the official datasheet preview.

📥 Download Datasheet

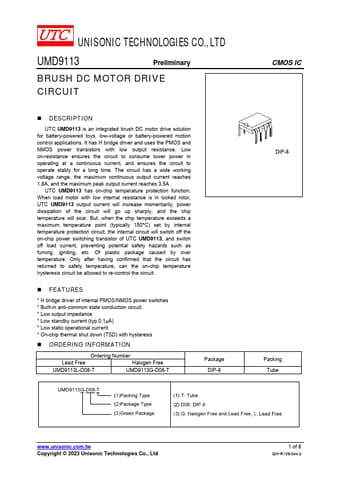

UMD9113 BRUSH DC MOTOR DRIVER by UTC - Datasheet Preview — Official preview page of the UMD9113 BRUSH DC MOTOR DRIVER datasheet (UTC).

Datasheet Details

Part number	UMD9113
Manufacturer	UTC
File Size	192.21 KB
Description	BRUSH DC MOTOR DRIVER
Datasheet	UMD9113-UTC.pdf
Additional preview pages of the UMD9113 datasheet.

UMD9113 Product details

Description

UTC UMD9113 is an integrated brush DC motor drive solution for battery-powered toys, low-voltage or battery-powered motion control applications.

Features

H bridge driver of internal PMOS/NMOS power switches.
Built-in anti-common state conduction circuit.
Low output impedance.
Low standby current (typ.0.1μA).
Low static operational current.
On-chip thermal shut down (TSD) with hysteresis.
