UCR16CM - TRIAC

UCR16CM Description

UNISONIC TECHNOLOGIES CO., UCR16CM/A TRIAC .
The UCR16CM/A is isolated, glass passivation type triac in full plastic TO-220Fpackage for medium power use. Repetitive Peak.

UCR16CM Features

* Repetitive Peak off-State Voltage: VDRM = 400, 600V
* R. M. S On-State Current: IT (RMS) = 16A

UCR16CM Applications

* Light Dimmer and Electric Flasher Unit.
* Household Electrical Equipment Control.
* Small Motor Control.
* Copy Machine.
* General Purpose Control Applications.
* Pb-free plating product number: UCR16CML/UCR16CMAL PIN CONFIGURATION PIN 1 2 3 PIN NAME MT1 MT2 Gate DESCRIPTI

📥 Download Datasheet

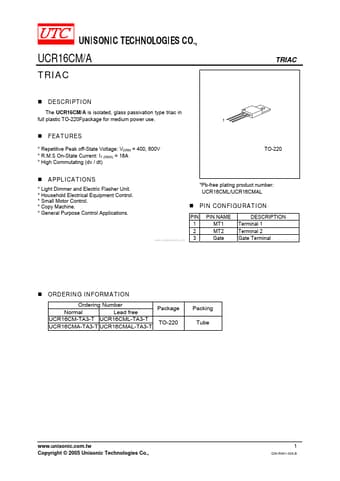

Preview of UCR16CM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UCR16CM
Manufacturer
UTC
File Size
200.76 KB
Datasheet
UCR16CM_UTC.pdf
Description
TRIAC
