UC3875L - LOW COST POWER-SAVING MODE PWM CONTROLLER

UTC

📥 Download Datasheet

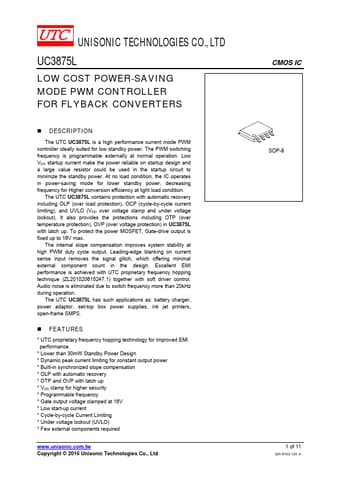

UC3875L Datasheet Preview — Preview of UC3875L PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UC3875L
Manufacturer	UTC
File Size	327.13 KB
Description	LOW COST POWER-SAVING MODE PWM CONTROLLER
Datasheet	UC3875L-UTC.pdf

UC3875L Product details

Description

The UTC UC3875L is a high performance current mode PWM controller ideally suited for low standby power.

Features

S.
UTC proprietary frequency hopping technology for Improved EMI performance.
Lower than 30mW Standby Power Design.
Dynamic peak current limiting for constant output power.
Built-in synchronized slope compensation.
OLP with automatic recovery.
OTP and OVP with latch up.
VDD clamp for higher security.
Programmable frequency.
Gate output voltage clamped at 16V.
Low start-up current.
Cycle-by-cycle Current Limiting.
Under voltage lockout.
