UC2842A PWM CONTROLLERS

UC2842A Description

UNISONIC TECHNOLOGIES CO., LTD UC2842A/2843A LINEAR INTEGRATED CIRCUIT HIGH PERFORMANCE CURRENT MODE PWM CONTROLLERS * .
The UTC UC2842A/2843A are high performance fixed frequency current mode controllers that specifically designed for Off-Line and DC to DC converter app.

UC2842A Features

* Operation output switching frequency up to 500 kHz
* Automatic feed forward compensation
* Latching PWM for cycle-by-cycle current limiting
* High current totem pole output
* Internally trimmed reference with under voltage lockout
* UVLO with hysteresis
* Low startup an

UC2842A Applications

* with minimal external parts count. The differences between UC2842A and UC2843A are the under-voltage lockout thresholds. The UC2842A ideally suited to off-line applications with UVLO thresholds of 16V(ON) and 10V(OFF), and UC2843A has UVLO thresholds of 8.4V(ON) and 7.6V(OFF) for lower voltage appli

📥 Download Datasheet

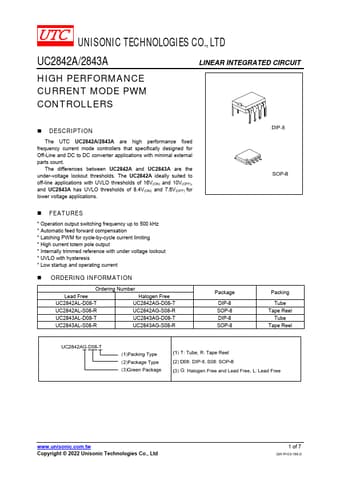

Preview of UC2842A PDF
