U74LVC1G97 - CONFIGURABLE MULTIPLE-FUNCTION GATE

General Description

The U74LVC1G97 is a configurable multiple-function gate with Schmitt input.All inputs can be connected to VCC or GND.

The output state is determined by eight patterns of 3-bit input.

The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and noninverter.

Key Features

  • S.
  • Wide supply voltage range from 1.65V to 5.5V.
  • Inputs accept voltages up to 5.5V.
  • IOFF supports partial-power-down mode.
  • Low static power consumption; ICC=10μA (Max. ).
  • ±24mA output drive (VCC=3.3V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
U74LVC1G99 ULTRA-CONFIGURABLE MULTIPLE- FUMCTION GATE Unisonic Technologies
U74LVC1G00 SINGLE 2-INPUT NAND GATE Unisonic Technologies
U74LVC1G02 SINGLE 2-INPUT NOR GATE Unisonic Technologies
U74LVC1G04 SINGLE INVERTER GATE Unisonic Technologies
U74LVC1G06 SINGLE INVERTER Unisonic Technologies

Other Datasheets by Unisonic Technologies

Part Number Description
U74LVC1G0832 SINGLE 3-INPUT POSITIVE AND-OR GATE
U74LVC1G14 SINGLE SCHMITT-TRIGGER INVERTER
U74LVC1G17 SINGLE SCHMITT-TRIGGER BUFFER
U74LVC1G175 SINGLE D-TYPE FLIP-FLOP
U74LVC1G240 SINGLE BUFFER/DRIVER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

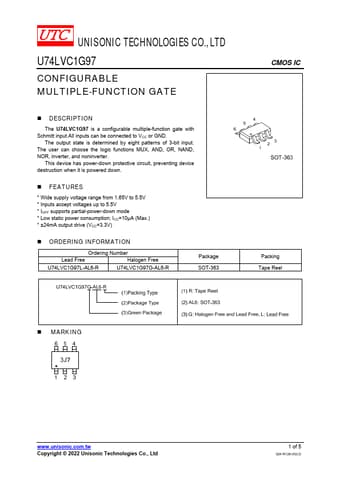

UNISONIC TECHNOLOGIES CO., LTD U74LVC1G97 CONFIGURABLE MULTIPLE-FUNCTION GATE  DESCRIPTION The U74LVC1G97 is a configurable multiple-function gate with Schmitt input.All inputs can be connected to VCC or GND. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and noninverter. This device has power-down protective circuit, preventing device destruction when it is powered down.  FEATURES * Wide supply voltage range from 1.65V to 5.5V * Inputs accept voltages up to 5.5V * IOFF supports partial-power-down mode * Low static power consumption; ICC=10μA (Max.) * ±24mA output drive (VCC=3.
