U74HC4316A QUAD SINGLE-POLE SINGLE-THROW ANALOG SWITCH

U74HC4316A Description

UNISONIC TECHNOLOGIES CO., LTD U74HC4316A Preliminary QUAD SINGLE-POLE SINGLE-THROW ANALOG SWITCH * .
The U74HC4316A is a quad single pole, single throw analog switch (SPST).

U74HC4316A Features

* two input/output terminals (nY and nZ) and an active HIGH enable input (nS). When nS is LOW, the analog switch is turned off. When E is HIGH all four analog switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in exce

📥 Download Datasheet

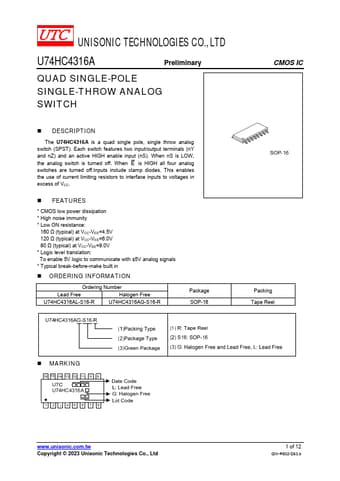

Preview of U74HC4316A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U74HC4316A
Manufacturer
UTC
File Size
339.43 KB
Datasheet
U74HC4316A-UTC.pdf
Description
QUAD SINGLE-POLE SINGLE-THROW ANALOG SWITCH
