TL431K, TL431 Datasheet - UTC

TL431K three-terminal adjustable regulator

The UTC TL431 is a three-terminal adjustable regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between VREF (approximately 2.5V) and 36V with two external resistors. It provides very wide applications, including shunt regulat.

TL431K Features

* Programmable output Voltage to 36V.

* Low dynamic output impedance 0.2Ω.

* Sink current capability of 1.0 to 100mA.

* Equivalent full-range temperature coefficient of 50ppm/°C typical for operation over full rated operating temperature range.

* ORDERING INFORMATION Ordering N

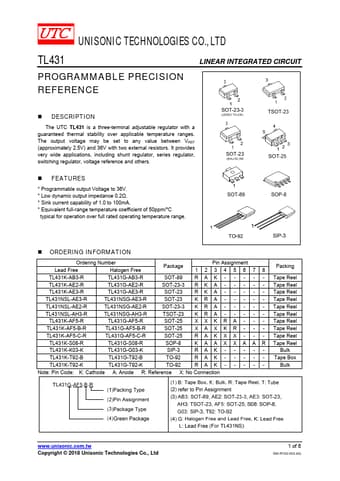

TL431_UTC.pdf

TL431K Datasheet Preview — This datasheet PDF includes multiple part numbers: TL431K, TL431. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TL431K, TL431

Manufacturer:

UTC

File Size:

328.91 KB

Description:

Three-terminal adjustable regulator.

Note:

This datasheet PDF includes multiple part numbers: TL431K, TL431.
Please refer to the document for exact specifications by model.
