LR1107E, LR1107 - 600mA FAST ULTRA LOW DROPOUT LINEAR REGULATOR

UTC

📥 Download Datasheet

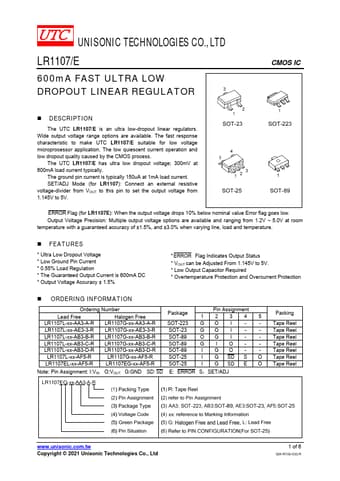

LR1107E Datasheet Preview — This datasheet PDF includes multiple part numbers: LR1107E, LR1107. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LR1107E, LR1107
Manufacturer	UTC
File Size	241.50 KB
Description	600mA FAST ULTRA LOW DROPOUT LINEAR REGULATOR
Datasheet	LR1107-UTC.pdf
Note	This datasheet PDF includes multiple part numbers: LR1107E, LR1107. Please refer to the document for exact specifications by model.

LR1107E Product details

Description

The UTC LR1107/E is an ultra low-dropout linear regulators.

Features

Ultra Low Dropout Voltage.
Low Ground Pin Current.
0.55% Load Regulation.
The Guaranteed Output Current is 600mA DC.
Output Voltage Accuracy ± 1.5%.
ERROR Flag Indicates Output Status.
VOUT can be Adjusted From 1.145V to 5V.
Low Output Capacitor Required.
Overtemperature Protection and Overcurrent Protection.
