C2655 - NPN SILICON TRANSISTOR

Features

  • S.
  • Low saturation voltage: VCE(SAT)= 0.5V (Max. ).
  • High speed switching time: TSTG=1.0μs (Typ. ).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C2655 Silicon NPN Transistor Toshiba
C2653 NPN Transistor Panasonic
C2653H NPN Transistor Panasonic
C2654 Silicon NPN Power Transistor SavantIC
C2610 2SC2610 Renesas

Other Datasheets by Unisonic Technologies

Part Number Description
C2688 2SC2688

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

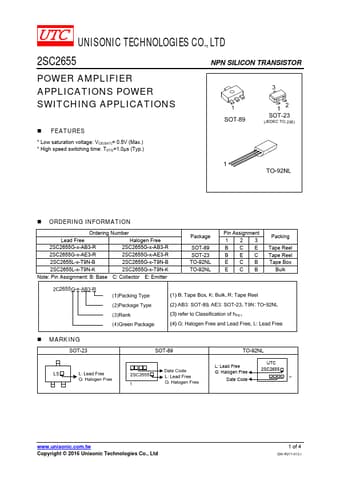

UNISONIC TECHNOLOGIES CO., LTD 2SC2655 NPN SILICON TRANSISTOR POWER AMPLIFIER APPLICATIONS POWER SWITCHING APPLICATIONS  FEATURES * Low saturation voltage: VCE(SAT)= 0.5V (Max.) * High speed switching time: TSTG=1.0μs (Typ.)  ORDERING INFORMATION Ordering Number Lead Free Halogen Free 2SC2655G-x-AB3-R 2SC2655G-x-AB3-R 2SC2655G-x-AE3-R 2SC2655G-x-AE3-R 2SC2655L-x-T9N-B 2SC2655G-x-T9N-B 2SC2655L-x-T9N-K 2SC2655G-x-T9N-K Note: Pin Assignment: B: Base C: Collector E: Emitter Package SOT-89 SOT-23 TO-92NL TO-92NL Pin Assignment 123 BCE BEC ECB ECB Packing Tape Reel Tape Reel Tape Box Bulk  MARKING SOT-23 SOT-89 TO-92NL L: Lead Free G: Halogen Free Date Code UTC 2SC2655 www.unisonic.com.tw Copyright © 2016 Unisonic Technologies Co., Ltd 1 of 4 QW-R211-013.
