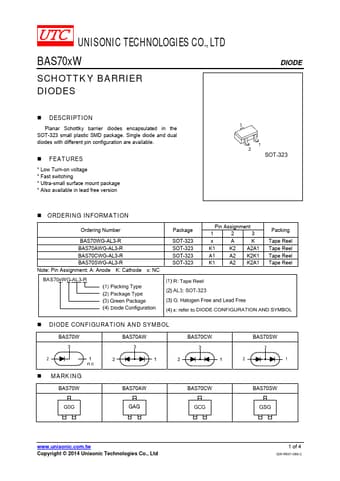

BAS70WG
DESCRIPTION
Planar Schottky barrier diodes encapsulated in the SOT-323 small plastic SMD package. Single diode and dual diodes with different pin configuration are available.
- FEATURES
- Low Turn-on voltage
- Fast switching
- Ultra-small surface mount package
- Also available in lead free version
- ORDERING INFORMATION
Ordering Number
BAS70WG-AL3-R BAS70AWG-AL3-R BAS70CWG-AL3-R BAS70SWG-AL3-R Note: Pin Assignment: A: Anode K: Cathode x: NC
Package
SOT-323 SOT-323 SOT-323 SOT-323
Pin Assignment 123 x AK K1 K2 A2A1 A1 A2 K2K1 K1 A2 K2A1
Packing
Tape Reel Tape Reel Tape Reel Tape Reel
- DIODE CONFIGURATION AND SYMBOL
BAS70W
BAS70AW
BAS70CW
- MARKING
BAS70W
BAS70AW GAG
BAS70CW
.unisonic..tw Copyright © 2014 Unisonic Technologies Co., Ltd
BAS70SW
BAS70SW
1 of 4
QW-R601-089.C
BAS70x W
DIODE
- ABSOLUATE MAXIMUM RATINGS (TA=25°C, unless otherwise specified)
PARAMETER
SYMBOL
RATING...
