9NM65-FDS - N-CHANNEL MOSFET

General Description

The UTC 9NM65-FDS is a Super Junction MOSFET Structure and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and a high rugged avalanche characteristics.

Key Features

  • S.
  • RDS(ON) < 0.72 Ω @ VGS = 10V, ID = 4.5A.
  • Fast Switching Capability.
  • Avalanche Energy Tested.
  • Improved dv/dt Capability, High Ruggedness.
  • SYMBOL Power MOSFET.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
9NM65 N-CHANNEL POWER MOSFET Unisonic Technologies
9NM60 N-CHANNEL POWER MOSFET Unisonic Technologies
9NM60-S N-CHANNEL POWER MOSFET Unisonic Technologies
9NM60N STD9NM60N STMicroelectronics

Other Datasheets by Unisonic Technologies

Part Number Description
9NM65-FD N-CHANNEL MOSFET
9NM60-FDS N-CHANNEL MOSFET
9NM70 N-CHANNEL POWER MOSFET
9NM70-FDS N-CHANNEL MOSFET
9NM70-S N-CHANNEL POWER MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

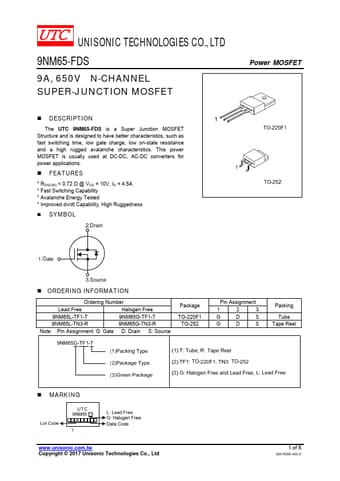

UNISONIC TECHNOLOGIES CO., LTD 9NM65-FDS 9A, 650V N-CHANNEL SUPER-JUNCTION MOSFET  DESCRIPTION The UTC 9NM65-FDS is a Super Junction MOSFET Structure and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and a high rugged avalanche characteristics. This power MOSFET is usually used at DC-DC, AC-DC converters for power applications.  FEATURES * RDS(ON) < 0.72 Ω @ VGS = 10V, ID = 4.
