2SB772L - MEDIUM POWER LOW-VOLTAGE TRANSISTOR

Description

The UTC 2SB772L is a medium power low voltage transistor, designed for audio power amplifier, DC-DC converter and voltage regulator.

Features

  • High current output up to 3A.
  • Low saturation voltage.
  • Complement to 2SD882L TO-92L 1:.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB772L Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SB772L PNP Transistor SeCoS
2SB772 MEDIUM POWER LOW-VOLTAGE TRANSISTOR Unisonic Technologies
2SB772 PNP SILICON POWER TRANSISTOR NEC
2SB772 PNP MEDIUM POWER TRANSISTOR ST Microelectronics

Other Datasheets by Unisonic Technologies

Part Number Description
2SB772G MEDIUM POWER LOW-VOLTAGE TRANSISTOR
2SB776 MEDIUM POWER LOW VOLTAGE TRANSISTOR
2SB766A PNP SILICON TRANSISTOR
2SB798 POWER TRANSISTOR
2SB1017 PNP Transistor

Full PDF Text Transcription

Click to expand full text

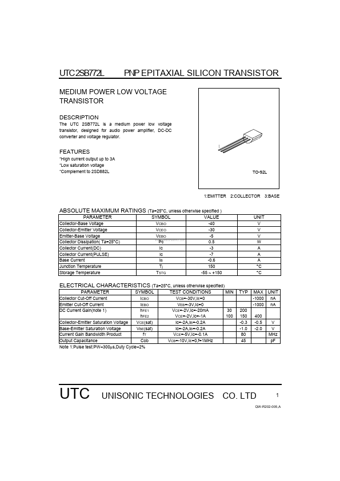

UTC 2SB772L PNP EPITAXIAL SILICON TRANSISTOR MEDIUM POWER LOW VOLTAGE TRANSISTOR DESCRIPTION The UTC 2SB772L is a medium power low voltage transistor, designed for audio power amplifier, DC-DC converter and voltage regulator. 1 FEATURES *High current output up to 3A *Low saturation voltage *Complement to 2SD882L TO-92L 1:EMITTER 2:COLLECTOR 3:BASE ABSOLUTE MAXIMUM RATINGS (Ta=25°C, unless otherwise specified ) PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Dissipation( Ta=25°C) Collector Current(DC) Collector Current(PULSE) Base Current Junction Temperature Storage Temperature SYMBOL VCBO VCEO VEBO www.DataSheet4U.com Pc Ic Ic IB Tj TSTG VALUE -40 -30 -5 0.5 -3 -7 -0.
