1813, 1812A - SINGLE SOUND GENERATOR

The 1813 by UTC is a SINGLE SOUND GENERATOR. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the 1813 SINGLE SOUND GENERATOR datasheet (UTC).

Datasheet Details

Part number 1813, 1812A
Manufacturer UTC
File Size 309.14 KB
Description SINGLE SOUND GENERATOR
Datasheet download datasheet 1812A_UTC.pdf
Note This datasheet PDF includes multiple part numbers: 1813, 1812A.
Please refer to the document for exact specifications by model.

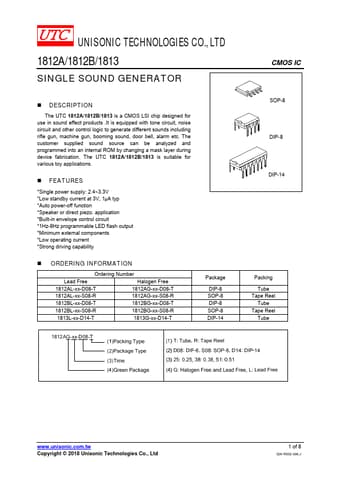

Additional preview pages of the 1813 datasheet.

1813 Product details

Description

The UTC 1812A/1812B/1813 is a CMOS LSI chip designed for use in sound effect products .It is equipped with tone circuit, noise circuit and other control logic to generate different sounds including rifle gun, machine gun, booming sound, door bell, alarm etc.
