ZMM5221B - SURFACE MOUNT ZENER DIODES

ZMM5221B Description

UPM ZMM5221B SERIES SURFACE MOUNT ZENER DIODES Voltage Range 2.4-47 Volts Power 500mWatts .

ZMM5221B Features

* Planar Die construction
* 500mW Power Dissipation
* Ideally Suited for Automated Assembly Processes
* Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above MINI-MELF/LL-34 .063(1.6) .055(1.4)DIA. Mechanical Data Case: Molded Glass M

📥 Download Datasheet

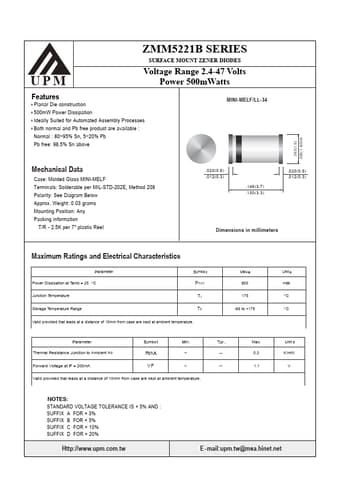

Preview of ZMM5221B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZMM5221B
Manufacturer
UPM
File Size
485.56 KB
Datasheet
ZMM5221B-UPM.pdf
Description
SURFACE MOUNT ZENER DIODES
