SD880CS, SD820CS - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SD880CS Description

UPM SD820CS~SD8100CS SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS Voltage Range 20 to 100 Volts Current 8 Amperes .

SD880CS Applications

* Low power loss, High efficiency
* Built-in strain relief
* Easy pick and place
* High surge capacity
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* For use in low voltage high frequency inverters, free wheeling, and
* polarity porotect

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SD880CS, SD820CS. Please refer to the document for exact specifications by model.

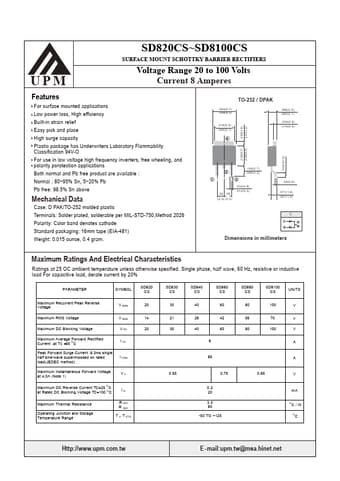

datasheet Preview Page 2

Datasheet Details

Part number
SD880CS, SD820CS
Manufacturer
UPM
File Size
618.69 KB
Datasheet
SD820CS-UPM.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SD880CS, SD820CS.
Please refer to the document for exact specifications by model.
