GBL02 - IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Download the GBL02 datasheet PDF. This datasheet also covers the GBL005 variant, as both devices belong to the same in-line glass passivated single-phase bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Plastic material has Underwriters Laboratory Flammability Classification 94V-O.
  • Ideal for printed circuit board.
  • Reliable low cost construction utilizing molded plastic technique.
  • Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above Mechanical Data Terminals: Leads solderable per MIL-STD-202, Method 208 Mounting position: Any Weight: 0.2 ounce, 5.6 grams. DO-41 C .098(2.5) GBL .796(20.2) .779(19.8) .146(3.70) .129(3.30) .040.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBL005-UPM.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBL02
Manufacturer UPM
File Size 1.62 MB
Description IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet download datasheet GBL02 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBL02 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER General Semiconductor
GBL02 Glass Passivated Chip Single-phase Bridge Rectifier First Silicon
GBL02 Single Phase Glass Passivated Silicon Bridge Rectifier GeneSiC
GBL02 Glass Passivated Single Phase Bridge Rectifiers JGD
GBL02 Silicon Bridge Rectifiers GME

Other Datasheets by UPM

Part Number Description
GBL005 IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBL01 IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBL04 IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBL06 IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBL08 IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

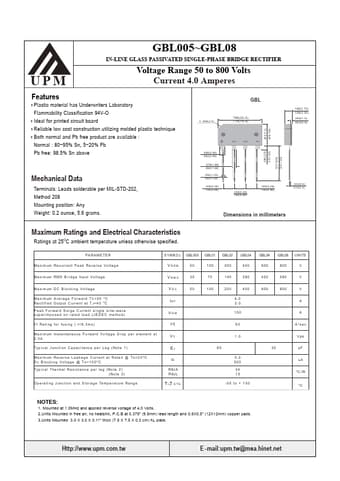

UPM GBL005~GBL08 IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Voltage Range 50 to 800 Volts Current 4.0 Amperes Features * Plastic material has Underwriters Laboratory Flammability Classification 94V-O * Ideal for printed circuit board * Reliable low cost construction utilizing molded plastic technique * Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above Mechanical Data Terminals: Leads solderable per MIL-STD-202, Method 208 Mounting position: Any Weight: 0.2 ounce, 5.6 grams. DO-41 C .098(2.5) GBL .796(20.2) .779(19.8) .146(3.70) .129(3.30) .040(1.0) .023(0.6) .441(11.2) .425(10.8) .089(2.25) .072(1.85) .727(18.45) .702(17.85) .098(2.49) .082(2.09) .078(1.98) .062(1.58) .050(1.25) .040(1.04) .208(5.28) .192(4.88) .208(5.
