DL4742A - SURFACE MOUNT ZENER DIODES

Product Overview

UPM

Part number	DL4742A
Manufacturer	UPM
File Size	506.55 KB
Description	SURFACE MOUNT ZENER DIODES
Datasheet	DL4742A Datasheet
Note	This datasheet PDF includes multiple part numbers: DL4742A, DL4728A. Please refer to the document for exact specifications by model.

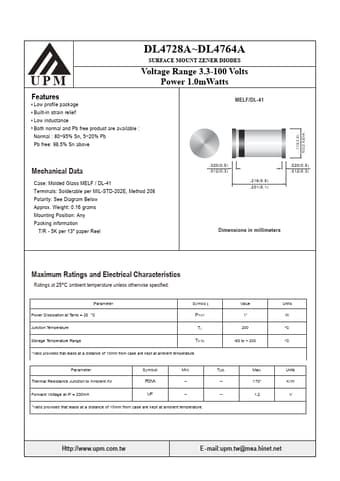

Additional preview pages of the DL4742A datasheet.

Low profile package.
Built-in strain relief.
Low inductance.
Both normal and Pb free product are available : Normal : 80~95% Sn, 5~20% Pb Pb free: 98.5% Sn above MELF/DL-41 .110(2.8) .102(2.6)DIA. Mechanical Data Case: Molded Glass MELF / DL-41 Terminals: Solderable per MIL-STD-202E, Method 208 Polarity: See Diagram Below Approx. Weight: 0.16 grams Mounting Position: Any Packing information T/R - 5K per 13" paper Reel .020(0.5) .012(0.3) .216(5.5) .201(5.1) .020(0.5).
