UP6161 - Single 12V Input Supply Dual Regulator Synchronous Buck PWM and Linear Regulator Controller

UPI

The UP6161 by UPI is a Single 12V Input Supply Dual Regulator Synchronous Buck PWM and Linear Regulator Controller. Below is the official datasheet preview.

📥 Download Datasheet

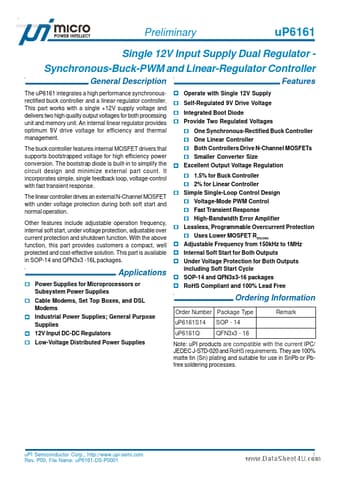

UP6161 Single 12V Input Supply Dual Regulator Synchronous Buck PWM and Linear Regulator Controller by UPI - Datasheet Preview — Official preview page of the **UP6161** Single 12V Input Supply Dual Regulator Synchronous Buck PWM and Linear Regulator Controller datasheet (UPI).

Datasheet Details

Part number	UP6161
Manufacturer	UPI
File Size	340.12 KB
Description	Single 12V Input Supply Dual Regulator Synchronous Buck PWM and Linear Regulator Controller
Datasheet	UP6161_UPI.pdf
Additional preview pages of the UP6161 datasheet.

UP6161 Product details

Description

The uP6161 integrates a high performance synchronousrectified buck controller and a linear-regulator controller.

Features

internal MOSFET drivers that supports bootstrapped voltage for high efficiency power conversion. The bootstrap diode is built-in to simplify the circuit design and minimize external part count. It incorporates simple, single feedback loop, voltage-control with fast transient response. The linear controller drives an external N-Channel MOSFET with under voltage protection during both soft start and normal operation. Other features include adjustable operation frequency, internal soft start, under.
