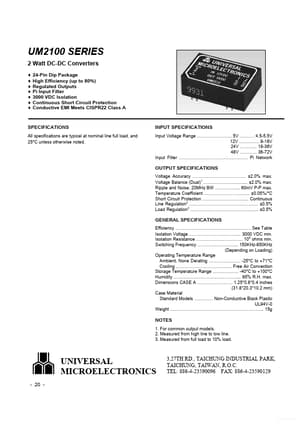

UM2125 Datasheet (UNIVERSAL MICROELECTRONICS) - (UM2100 Series) 2 Watt DC-DC Converters

UM2125, (UM2100 Series) 2 Watt DC-DC Converters

UM2100 SERIES 2 Watt DC-DC Converters 24-Pin Dip Package High Efficiency (up to 80%) Regulated Outputs Pi Input Filter 3000 VDC Isolation Continuous Short Circuit Protection Conductive EMI Meets CISPR22 Class A SPECIFICATIONS All specifications are typical at nominal line full load, and 25°C unless otherwise noted.

INPUT SPECIFICATIONS Input Voltage Range .…………………..

5V .……… 4.5-5.5V 12V …….…….

9-18V 24V .…….….

18-36V 48V …….
