UM1000W-4 Datasheet (UNIVERSAL MICROELECTRONICS)

UM1000W-4, 3 Watt DC/DC Converters

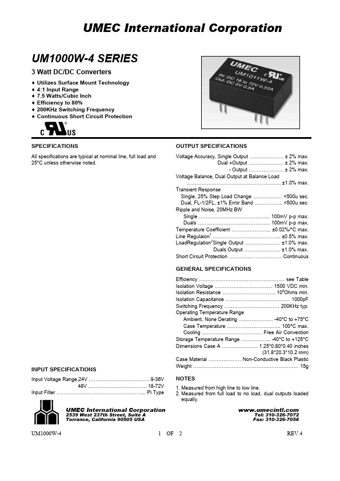

UMEC International Corporation UM1000W-4 SERIES 3 Watt DC/DC Converters Utilizes Surface Mount Technology 4:1 Input Range 7.5 Watts/Cubic Inch Efficiency to 80% 200KHz Switching Frequency Continuous Short Circuit Protection SPECIFICATIONS All specifications are typical at nominal line, full load and 25°C unless otherwise noted.

OUTPUT SPECIFICATIONS Voltage Accuracy, Single Output ……………..….

± 2% max.

Dual +Output ………………… ± 2% max.

- O
