PAD16CH0!4, PAD16CH007 - Active Delay Lines

UNIVERSAL MICROELECTRONICS

The PAD16CH0!4 by UNIVERSAL MICROELECTRONICS is a Active Delay Lines. Below is the official datasheet preview.

📥 Download Datasheet

PAD16CH0!4 Active Delay Lines by UNIVERSAL MICROELECTRONICS - Datasheet Preview — Official preview page of the PAD16CH0!4 Active Delay Lines datasheet (UNIVERSAL MICROELECTRONICS).

Datasheet Details

Part number	PAD16CH0!4, PAD16CH007
Manufacturer	UNIVERSAL MICROELECTRONICS
File Size	71.56 KB
Description	Active Delay Lines
Datasheet	PAD16CH007-UNIVERSALMICROELECTRONICS.pdf
Note	This datasheet PDF includes multiple part numbers: PAD16CH0!4, PAD16CH007. Please refer to the document for exact specifications by model.

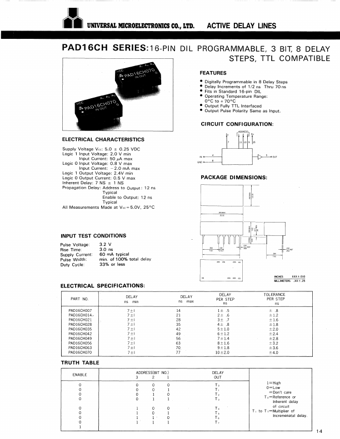

Additional preview pages of the PAD16CH0!4 datasheet.

PAD16CH0!4 Product details

Features

Digitally Programmable in 8 Delay Steps.
Delay Increments of 1/2 ns Thru 70 ns.
Fits in Standard 16-pin DIL.
Operating Temperature Range: 0°c to+ 70°C.
Output Fully TTL Interfaced.
Output Pulse Polarity Same as Input.
