CSR604 Datasheet (UNITED AUTOMATION)

CSR604, POWER REGULATOR

X10229 RFI Filtering recommendations - addressing the EMC Directive X10213 ITA Interaction, uses for phase angle and for burst fire control.

X10255 SRA Safety requirements - addressing the Low Voltage Directive (LVD) including :- Thermal data /cooling ; “Live” parts warning & Earthing requirements;

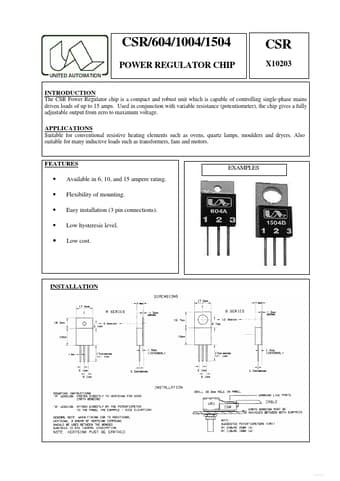

CSR/604/1004/1504 POWER REGULATOR CHIP INTRODUCTION CSR X10203 The CSR Power Regulator chip is a compact and robust unit which is capable of controlling single-phase mains driven loads of up to 15 amps.

Used in conjunction with variable resistance (potentiometer), the chip gives a fully adjustable output from zero to maximum voltage.

APPLICATIONS Suitable for conventional resistive heating elements such as ovens, quartz lamps, moulders and dryers.

Also suitable for many inductive loads such a

CSR604 Features

* Available in 6, 10, and 15 ampere rating. Flexibility of mounting. Easy installation (3 pin connections). Low hysteresis level. Low cost. EXAMPLES

* INSTALLATION F r e e D a t a s h e e t h tp : / / w w w . d a t a s h e e t 4 u . c o m / INSTALLA
