P0780ATFS, P0780ATF Datasheet - UNIKC

P0780ATFS N-Channel MOSFET

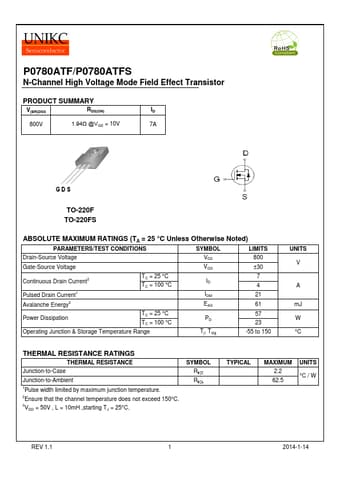

P0780ATF/P0780ATFS N-Channel High Voltage Mode Field Effect Transistor PRODUCT SUMMARY V(BR)DSS RDS(ON) 800V 1.94Ω @VGS = 10V ID 7A TO-220F TO-220FS ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 800 Gate-Source Voltage VGS ±30 Continuous Drain Current2 Pulsed Drain Current1 TC = 25 °C TC = 100 °C ID IDM 7 4 21 Avalanche Energy3 EAS 61 Power Dissipation TC = 25 °C TC = 100 °C PD 57 23 Operat.

P0780ATF-UNIKC.pdf

This datasheet PDF includes multiple part numbers: P0780ATFS, P0780ATF. Please refer to the document for exact specifications by model.
P0780ATFS Datasheet Preview Page 2 P0780ATFS Datasheet Preview Page 3

Datasheet Details

Part number:

P0780ATFS, P0780ATF

Manufacturer:

UNIKC

File Size:

517.83 KB

Description:

N-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: P0780ATFS, P0780ATF.
Please refer to the document for exact specifications by model.
