ESD05V52D-A, ESD3.3V52D-A - Transient Voltage Suppressors

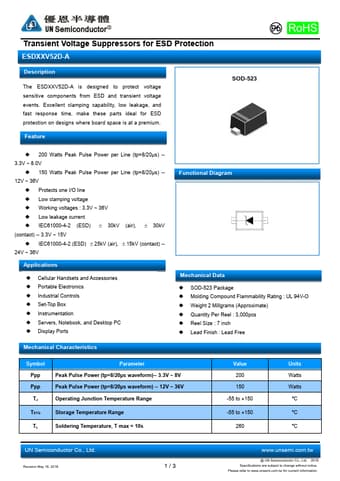

ESD05V52D-A Datasheet Preview — This datasheet PDF includes multiple part numbers: ESD05V52D-A, ESD3.3V52D-A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ESD05V52D-A, ESD3.3V52D-A
Manufacturer	UN Semiconductor
File Size	742.40 KB
Description	Transient Voltage Suppressors
Datasheet	ESD3.3V52D-A-UNSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: ESD05V52D-A, ESD3.3V52D-A. Please refer to the document for exact specifications by model.

ESD05V52D-A Product details

Description

The ESDXXV52D-A is designed to protect voltage sensitive components from ESD and transient voltage events. 200 Watts Peak Pulse Power per Line (tp=8/20µs) -- 3.3V ~ 8.0V 150 Watts Peak Pulse Power per Line (tp=8/20µs) -- 12V ~ 36V Protects one I/O line Low clamping voltage Working voltages : 3
