UC2843, UC2842 - fixed frequency current mode PWM controller

Datasheet Details

Part number	UC2843, UC2842
Manufacturer	UMW
File Size	881.53 KB
Description	fixed frequency current mode PWM controller
Datasheet	UC2842-UMW.pdf
Note	This datasheet PDF includes multiple part numbers: UC2843, UC2842. Please refer to the document for exact specifications by model.

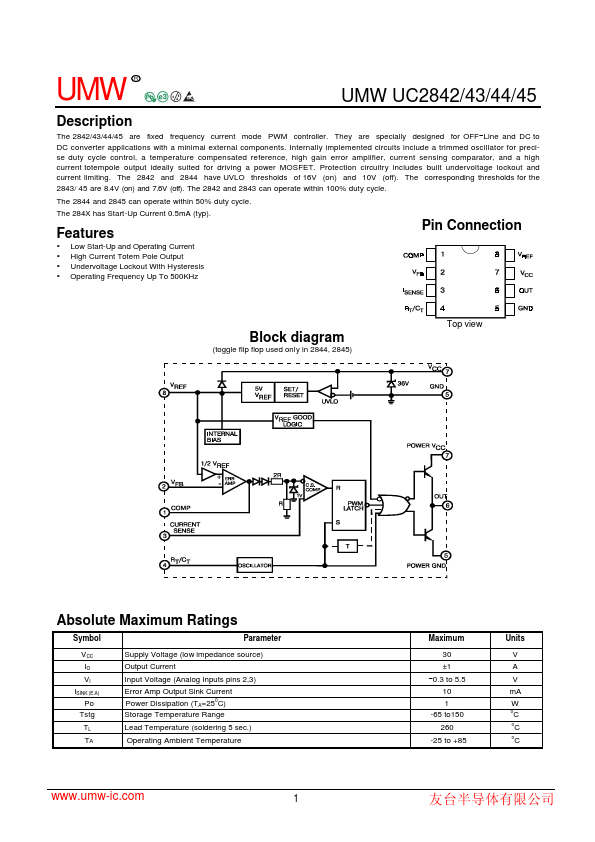

The 2842/43/44/45 are fixed frequency current mode PWM controller. Line and DC to DC converter applications with a minimal external components.

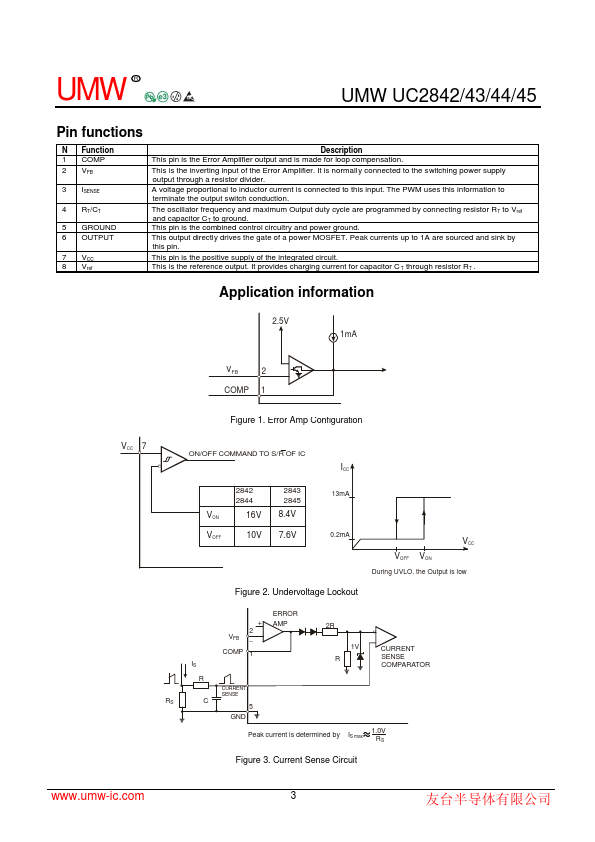

Pin Connection.
Low Start-Up and Operating Current.
High Current Totem Pole Output.
Undervoltage Lockout With Hysteresis.

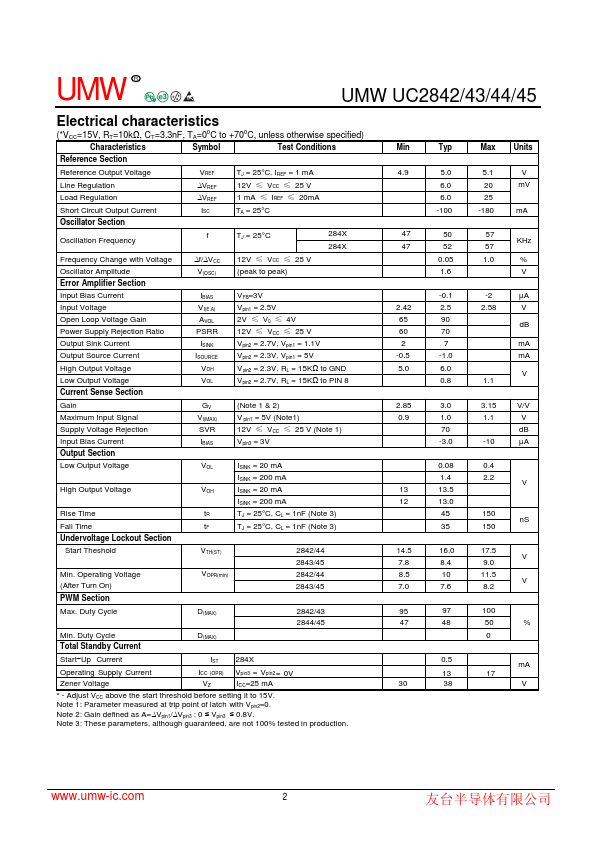

Operating Frequency Up To 500KHz Block diagram (toggle flip flop used only in 2844, 2845) V Top view R T Absolute Maximum Ratings Symbol Parameter VCC IO VI ISINK (E. A) Po Tstg TL TA Supply Voltage (low impedance source) Output Current Input Voltage (Analog Inputs pins 2,3) Error Amp Output Sink Current Power Dissipation (TA=250C.
