TL431AIDBZR - Precision Adjustable Shunt Regulator

The TL431AIDBZR by UMW is a Precision Adjustable Shunt Regulator. Below is the official datasheet preview.

Datasheet Details

Part number	TL431AIDBZR
Manufacturer	UMW
File Size	760.20 KB
Description	Precision Adjustable Shunt Regulator
Datasheet	TL431AIDBZR-UMW.pdf
Additional preview pages of the TL431AIDBZR datasheet.

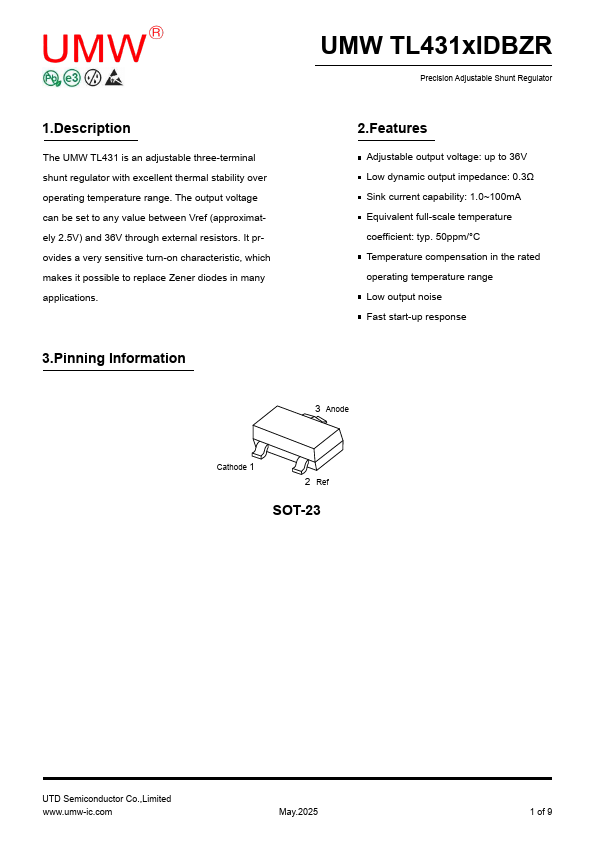

The UMW TL431 is an adjustable three-terminal shunt regulator with excellent thermal stability over operating temperature range.

Adjustable output voltage: up to 36V Low dynamic output impedance: 0.3Ω Sink current capability: 1.0~100mA Equivalent full-scale temperature coefficient: typ. 50ppm/°C Temperature compensation in the rated operating temperature range Low output noise Fast start-up response 3 Anode Cathode 1 2 Ref SOT-23 UTD Semiconductor Co. ,Limited www. umw-ic. com May.2025 1 of 9 www. umw-ic. com 4.Block Diagram Reference UMW TL431xIDBZR Precision Adjustable Shunt Regulator cathode 2.5V Vref anode 2 of.
