MAX485ESA - low-power transceivers

Datasheet Summary

Description

The UMW MAX485 is low-power transceivers for RS-485 and RS- 422 communication.

IC contains one driver and one receiver.

The driver slew rates of the MAX485 is not limited, allowing them to transmit up to 2.5Mbps.

Features

  • Low Quiescent Current: 300µA -7V to +12V Common-Mode Input Voltage Range Three-State Outputs 30ns Propagation Delays, 5ns Skew Full-Duplex and Half-Duplex Versions Available Operate from a Single 5V Supply Allows up to 32 Transceivers on the Bus Data rate: 2,5 Mbps Current-Limiting and Thermal Shutdown for Driver Overload Protection RO 1 R RE 2 DE 3 DI 4 D SOP-8 8 VCC 7B 6A 5 GND UTD Semiconductor Co. ,Limited www. umw-ic. com Apr.2025 1 of 10 www. umw-ic. com UMW MAX485ESA 4.Absolute M.

📥 Download Datasheet

Datasheet preview – MAX485ESA

Datasheet Details

Part number MAX485ESA
Manufacturer UMW
File Size 0.99 MB
Description low-power transceivers
Datasheet download datasheet MAX485ESA Datasheet

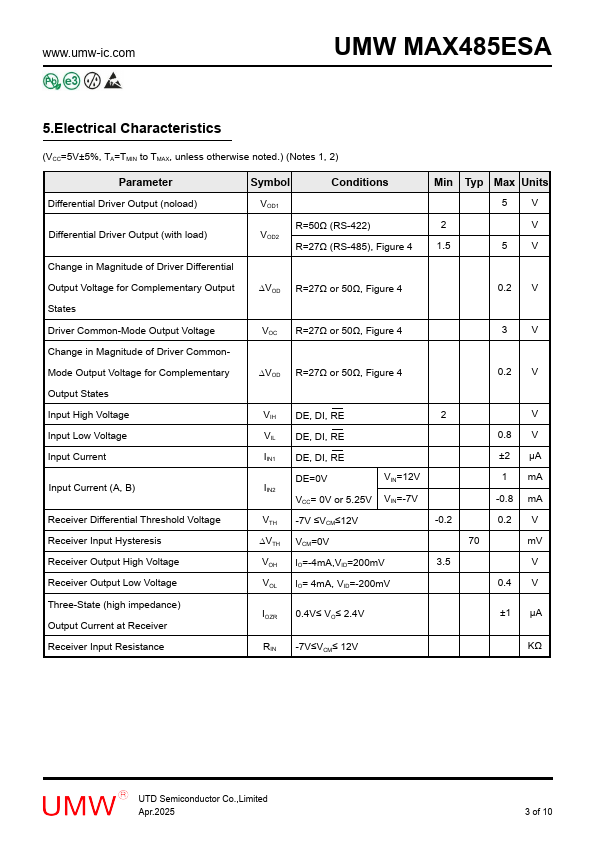

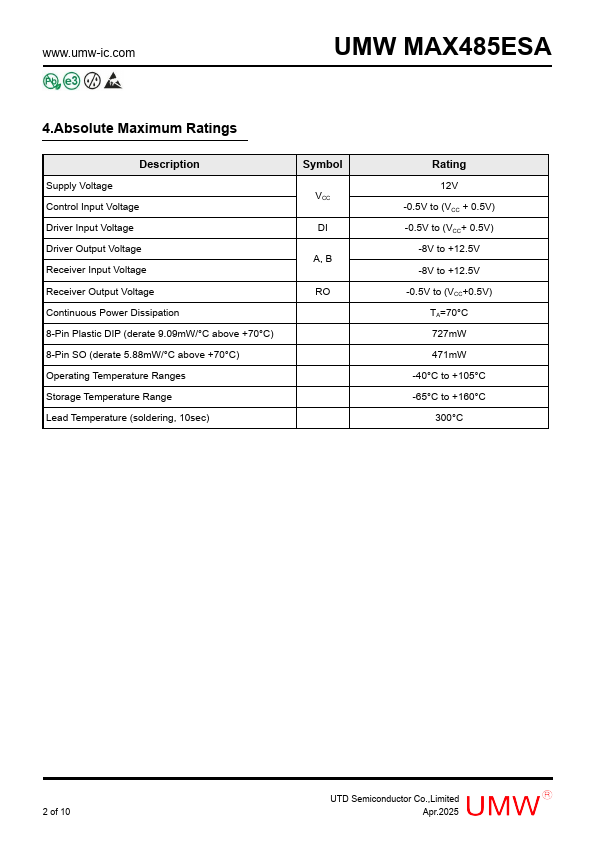

Additional preview pages of the MAX485ESA datasheet.

📁 Similar Datasheet

  • MAX485E - RS-485/RS-422 Transceivers (Maxim Integrated)
  • MAX485 - 15kV ESD-Protected / Slew-Rate-Limited / Low-Power / RS-485/RS-422 Transceivers (Maxim)
  • MAX485 - Slew-Rate-Limited RS-485/RS-422 Transceivers (HTC)
  • MAX4850 - Dual SPDT Analog Switches (Maxim Integrated Products)
  • MAX4850H - Dual SPDT Analog Switches (Maxim Integrated Products)
  • MAX4851 - (MAX4851 / MAX4853) Quad SPST Switches (Maxim Integrated Products)
  • MAX4851H - Quad SPST Switches (Maxim Integrated)
  • MAX4852 - Dual SPDT Analog Switches (Maxim Integrated Products)
  • MAX4852H - Dual SPDT Analog Switches (Maxim Integrated Products)
  • MAX4853 - (MAX4851 / MAX4853) Quad SPST Switches (Maxim Integrated Products)
Other Datasheets by UMW
  • MAX485E - Slew-Rate-Limited RS-485/RS-422 Transceivers
  • MAX232 - Multi-Channel RS-232 Drivers/Receivers
  • MAX232ESE - +5 V-Powered Multi-Channel RS-232 Drivers/Receivers
  • MAX3232ESE - two receivers and two drivers
  • MAX3485ESA - RS485/RS422 transceiver

Full PDF Text Transcription

Click to expand full text

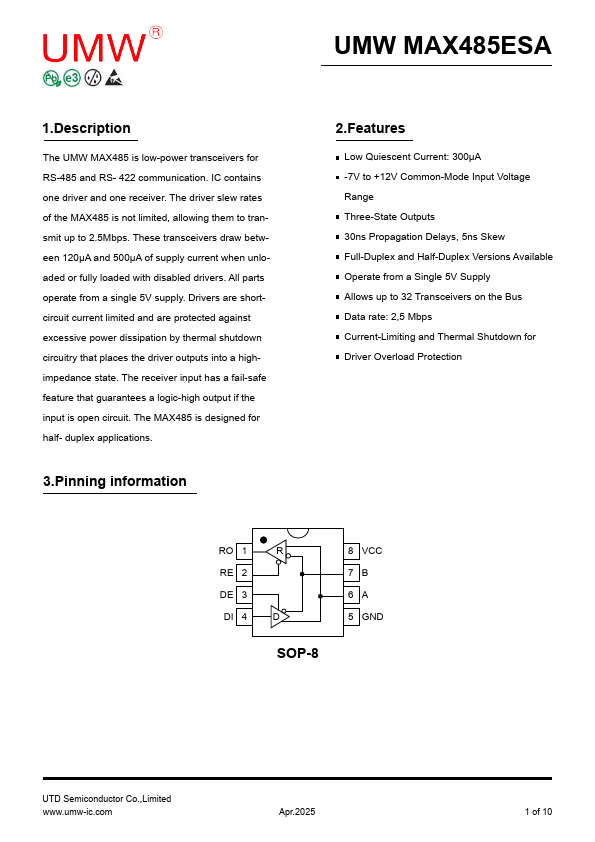

UMW MAX485ESA 1.Description The UMW MAX485 is low-power transceivers for RS-485 and RS- 422 communication. IC contains one driver and one receiver. The driver slew rates of the MAX485 is not limited, allowing them to transmit up to 2.5Mbps. These transceivers draw between 120µA and 500µA of supply current when unloaded or fully loaded with disabled drivers. All parts operate from a single 5V supply. Drivers are shortcircuit current limited and are protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a highimpedance state. The receiver input has a fail-safe feature that guarantees a logic-high output if the input is open circuit. The MAX485 is designed for half- duplex applications. 3.Pinning information 2.
