LM321MF - Low Power Op Amp

📥 Download Datasheet

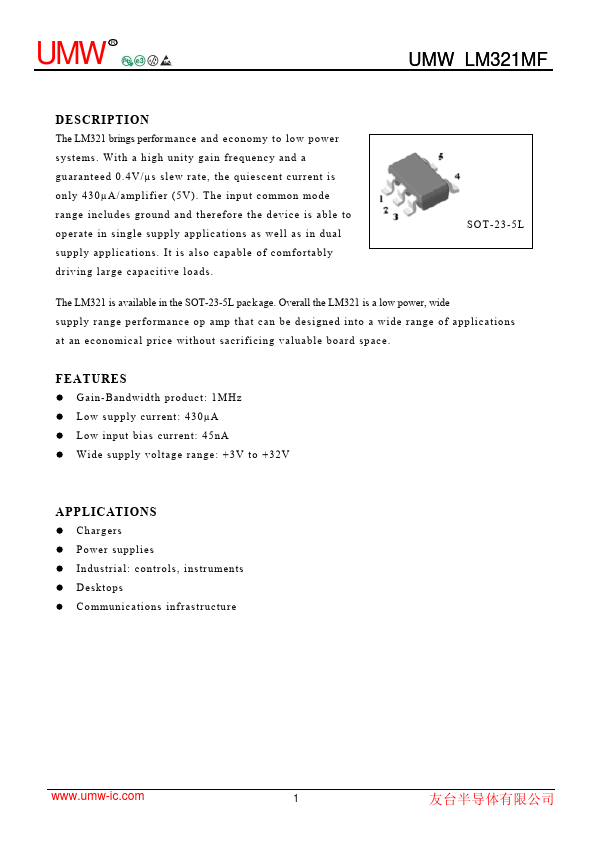

LM321MF Datasheet Preview — Preview of LM321MF PDF

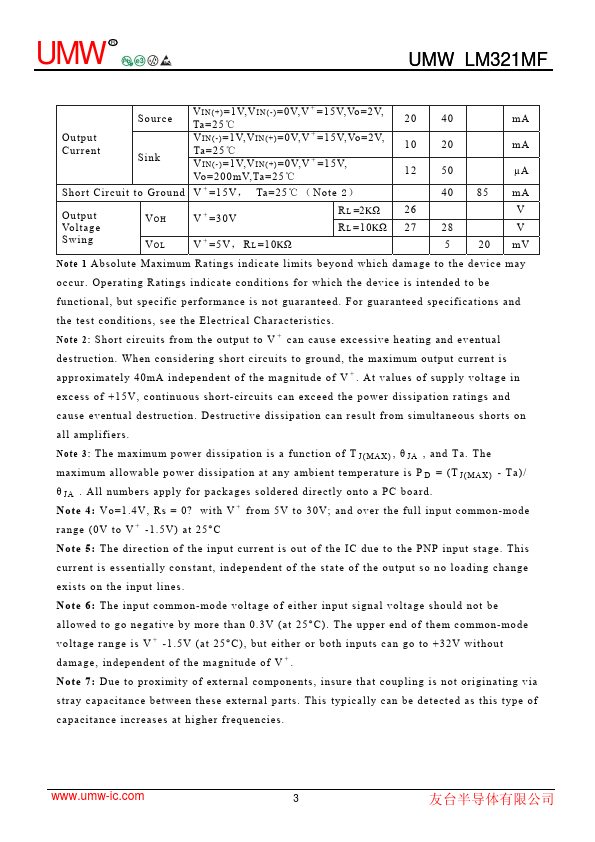

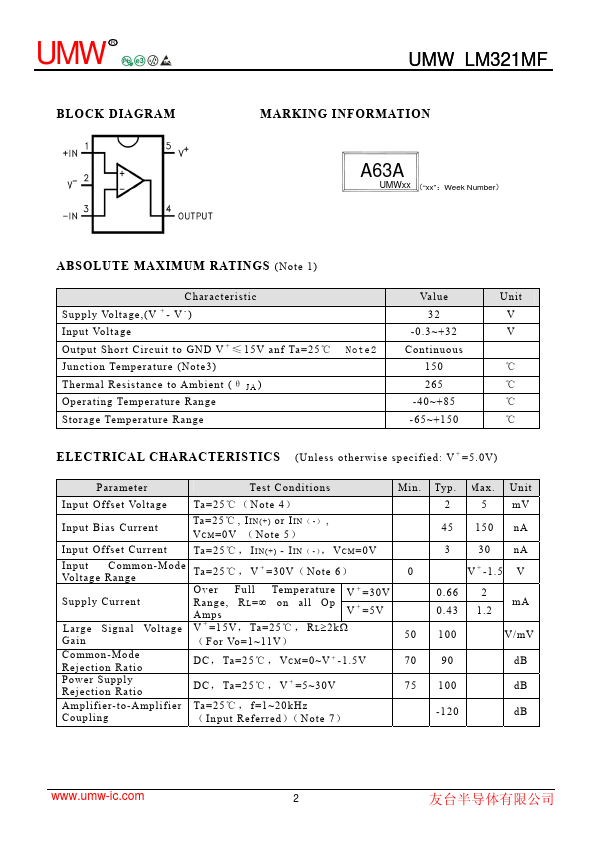

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LM321MF
Manufacturer	UMW
File Size	2.50 MB
Description	Low Power Op Amp
Datasheet	LM321MF-UMW.pdf

LM321MF Product details

Description

The LM321 brings perfor mance and economy to low power systems.

Features

Gain-Bandwidth product: 1MHz Low supply current: 430µA Low input bias current: 45nA Wide supply voltage range: +3V to +32V A P P L I C AT I O N S Chargers Power supplies Industrial: controls, instruments Desktops Communications infrastructure www. umw-ic. com 1 UMW R BLOCK.
