HT7030, HT7020 three-port low voltage detector

HT7030 Description

UMW HT70xx Ver 2.0 1..
UMW HT70xx series is a three-port low voltage detector implemented with CMOS technology.

HT7030 Features

* Low power consumption, typical value: 2.0uA Wide operating voltage range: 1.5V~12V Low temperature drift detection voltage: typical value ±50ppm/°C Built-in hysteresis High-precision voltage detection: ±3% Small package: SOT89-3, TO92, SOT23-3 Non-volatile RAM signal storage protector Battery storag

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HT7030, HT7020. Please refer to the document for exact specifications by model.

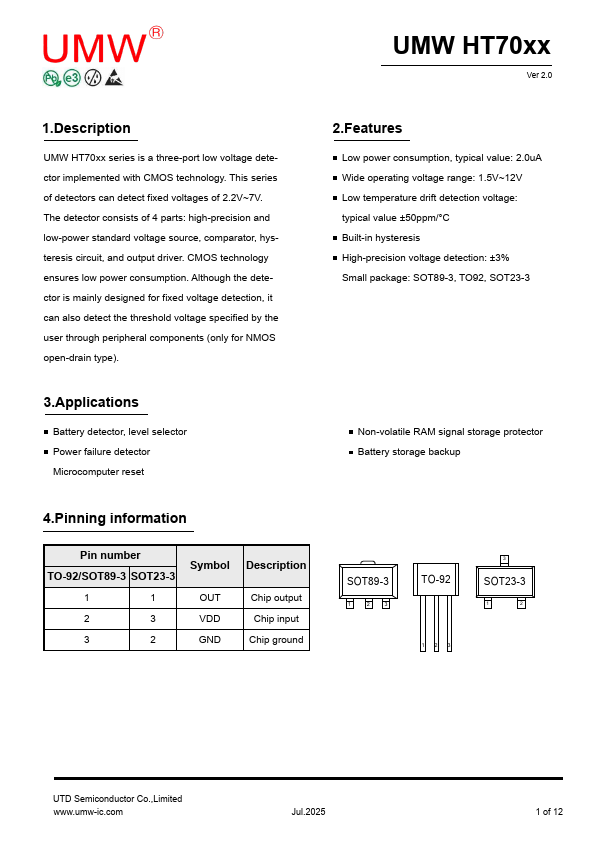

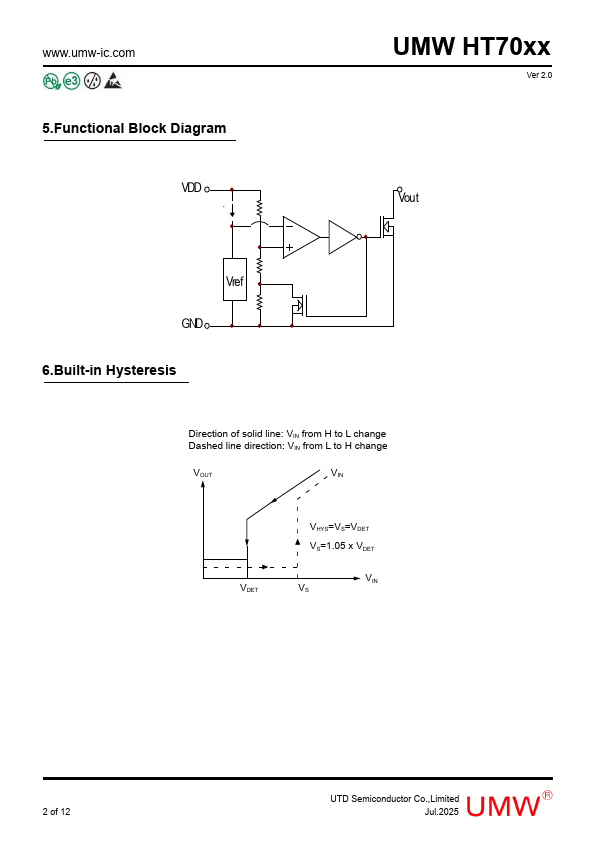

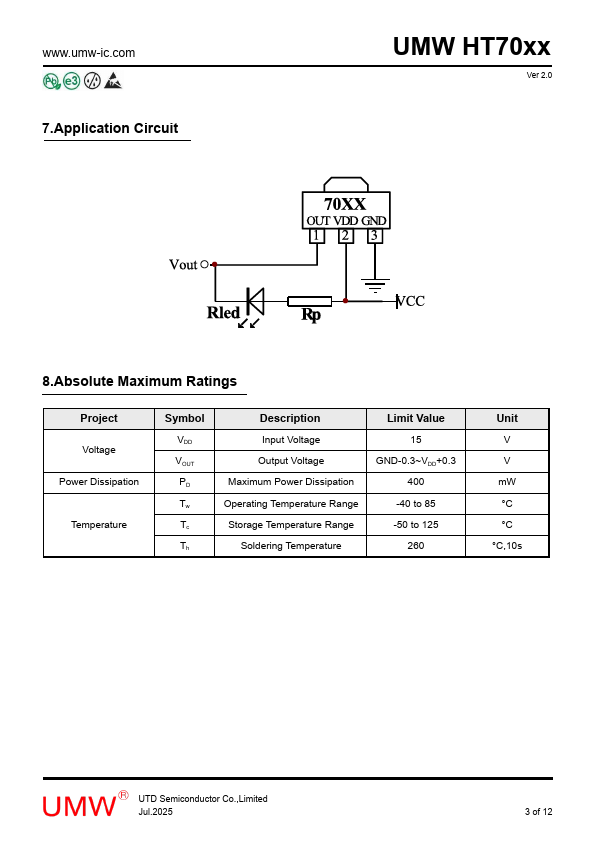

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HT7030, HT7020
Manufacturer
UMW
File Size
195.92 KB
Datasheet
HT7020-UMW.pdf
Description
three-port low voltage detector
Note
This datasheet PDF includes multiple part numbers: HT7030, HT7020.
Please refer to the document for exact specifications by model.
