ESD5451N - a bi-directional TVS

Product Overview

📥 Download Datasheet

ESD5451N a bi-directional TVS by UMW - Datasheet Preview — Datasheet preview – ESD5451N

Datasheet Details

Part number	ESD5451N
Manufacturer	UMW
File Size	774.40 KB
Description	a bi-directional TVS
Datasheet	ESD5451N Datasheet

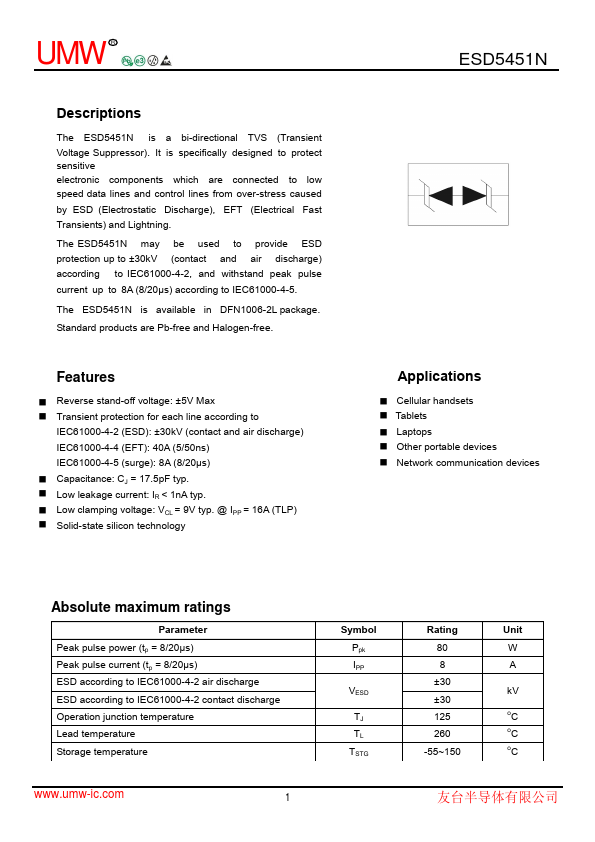

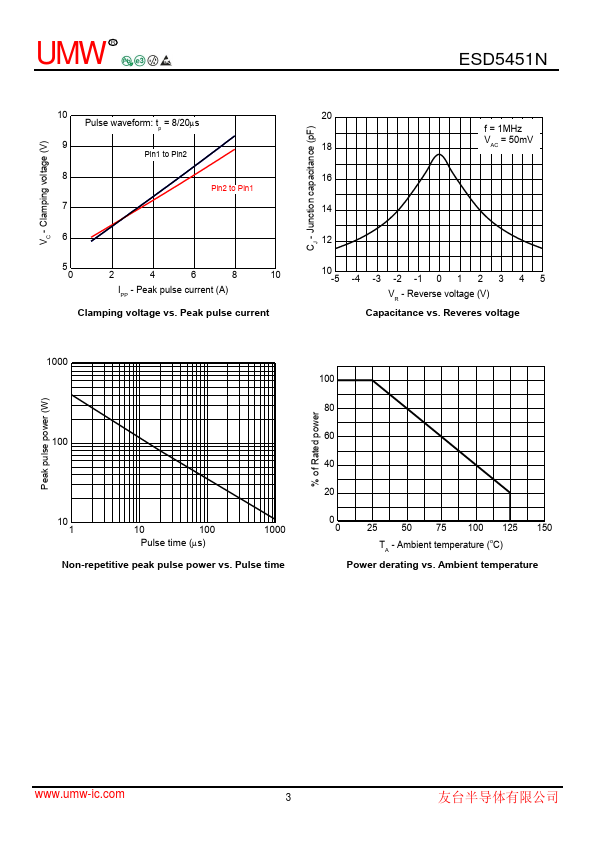

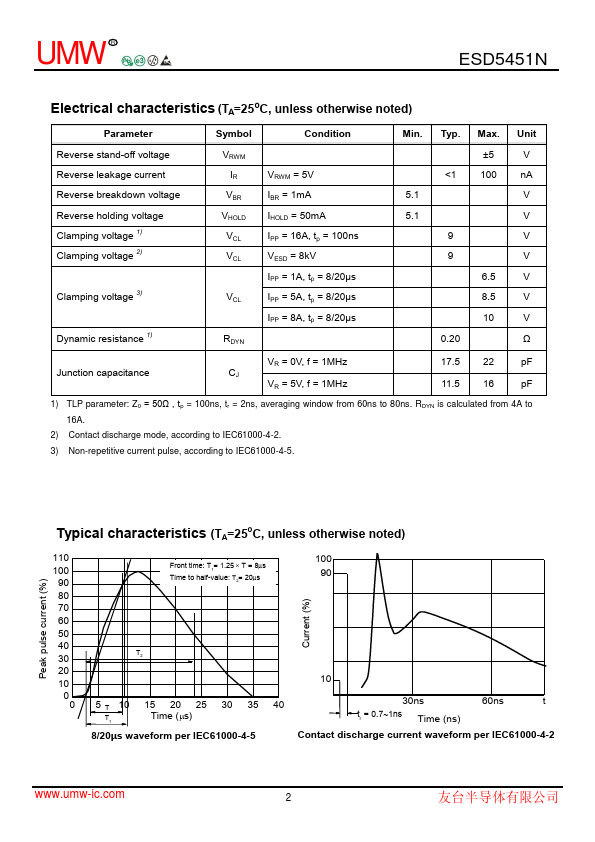

Additional preview pages of the ESD5451N datasheet.

Product details

Description

The ESD5451N is a bi-directional TVS (Transient Voltage Suppressor).

Features

Reverse stand-off voltage: ±5V Max.
Transient protection for each line according to IEC61000-4-2 (ESD): ±30kV (contact and air discharge) IEC61000-4-4 (EFT): 40A (5/50ns) IEC61000-4-5 (surge): 8A (8/20μs).
Capacitance: CJ = 17.5pF typ.
Low leakage current: IR < 1nA typ.
Low clamping voltage: VCL = 9V typ. @ IPP = 16A (TLP).
Solid-state silicon technology ESD5451N.
