UM8326 - Floppy Disk Data Separator

Name: UM8326
SKU: UM8326-501305

UMC

📥 Download Datasheet

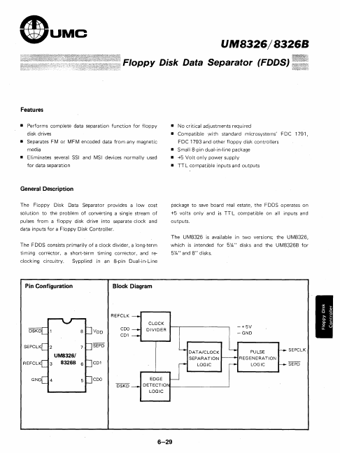

UM8326 Datasheet Preview — Preview of UM8326 PDF

Datasheet Details

Part number	UM8326
Manufacturer	UMC
File Size	170.74 KB
Description	Floppy Disk Data Separator
Datasheet	UM8326_UMC.pdf

UM8326 Product details

Description

The Floppy Disk Data Separator provides a low cost solution to the problem of converting a single stream of pulses from a floppy disk drive into separate clock and data inputs for a Floppy Disk Controller.

Features

Performs complete data separation function for floppy disk drives.
Separates FM or MF M encoded data from any magnetic media.
Eliminates several SSI and MSI devices normally used for data separation.
No critical adjustments required.
Compatible with standard microsysterns' FDC 1791, FDC 1793 and other floppy disk controllers.
Small 8-pin dual-in-line package.
+5 Volt only power supply.
TTL compatible inputs and outputs Ge.
